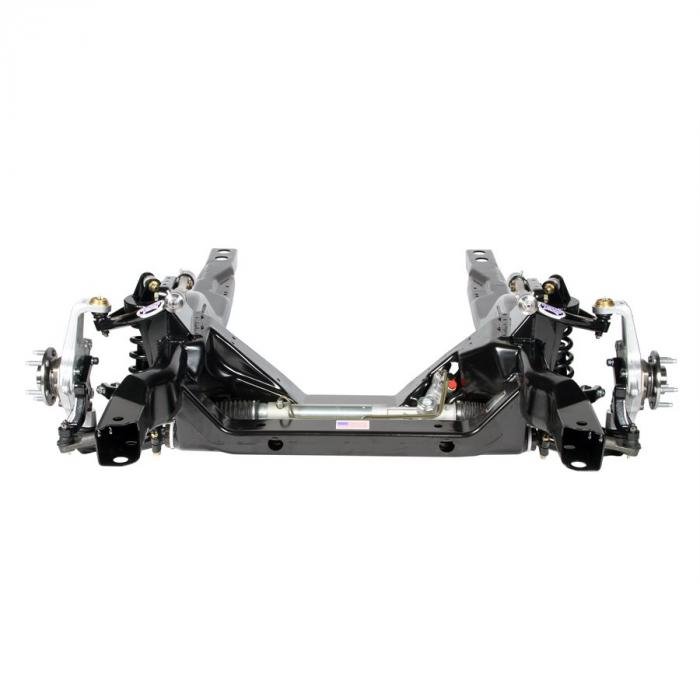

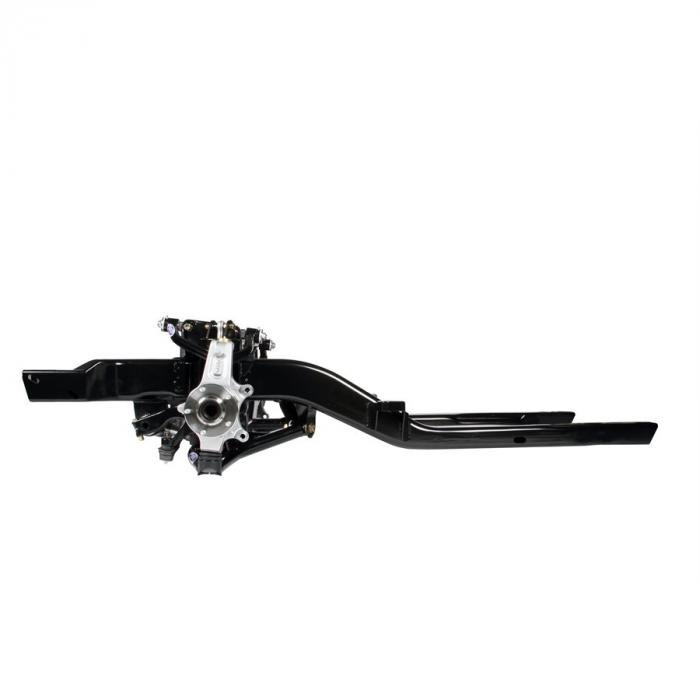

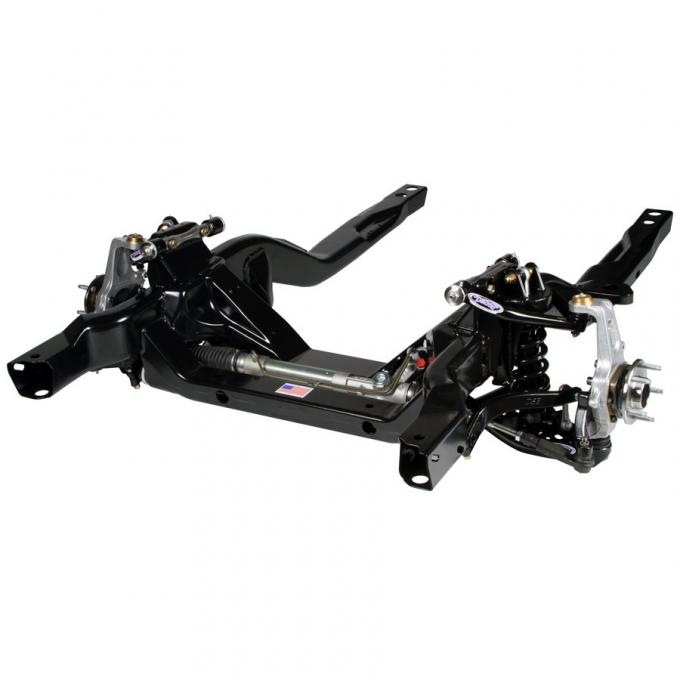

Detroit Speed Hydroformed Subframe 1970-81 Camaro/Firebird P/C Assembled SBC/LS Base Shock 032014

Detroit Speeds Hydroformed front subframe is a bolt-in replacement for the original stock subframe. It improves the handling and ride quality by utilizing DSEs unique suspension geometry. It is the Only subframe in the aftermarket industry with hydroformed frame rails.

The hydroformed frame rails feature strength and stiffness, precise quality and repeatability. Hydroforming preserves the steels strength and stiffness because it is performed at low temperatures, unlike traditional high temperature processes which decrease material strength.
Details:

• Powdercoated and Assembled Hydroformed Subframe - Base Shocks - SBC/LS
• Bolt-In Replacement For Original Stock Subframe
• Improves Handling and Ride Quality
• Factory Assembled Unit
• Black Powdercoat Finish
• Sold As A Kit
• SKU: 032014

Fits Vehicles:

• 1970-1981 Chevrolet Camaro
• 1970-1981 Pontiac Firebird

Engine Fitment:

• Small Block Chevrolet Engines Use DSE 060411
• LS1|LS2|LS3|LS7 Engines Use DSE 060414

The Detroit Speed, Inc. Hydroformed Subframe Comes With The Following:

• Hydroformed Framerails
• Stamped Crossmembers
• Tubular Upper and Lower Control Arms
• DSE/JRI Coilover Shocks with Detroit Tuned valving
• Torrington Bearings
• Coilover Springs
• Detroit Tuned Power Rack and Pinion Steering
• Splined Anti-Roll Bar
• Forged DSE Spindle
• Spanner Tool for easy shock adjustments
• Composite Anti-Roll bar bushings
• Spring Rate: 550lbs/in
• Spring Free Length: 8 Inches

Subframe Specifications:

• Nominal Camber: -0.5 deg.
• Nominal Caster: Plus 4.5 deg. (Adjustable to 5.5 deg.)
• Total Suspension Travel: 6.0 Inches
• Total Bumpsteer w/ 30 Inch Toe-Span: 0.084 Inch Over 6 Inches of Travel
• Turning Angle (18 Inch x 10 Inch or 17 Inch x 9 Inch Wheels): 30.0 deg.
• Ackerman Angle (18 Inch x 10 Inch or 17 Inch x 9 Inch Wheels): 2.5 deg.
• Turning Angle (18 Inch x 9 Inch Wheels): 33.8 deg.
• Ackerman Angle (18 Inch x 9 Inch Wheels): 3.5 deg.

Wheel Fitment:

• 17 x 8 Inch to 17 x 9 Inch Wheels
• 18 x 9 Inch to 18 x 10 Inch Wheels
• 19 x 9 Inch to 19 x 10 Inch Wheels
• Comes With 5 x 4.75 Inch Wheel Bolt Pattern w/ M12 x 1.5 Studs

Up to a 10 inch wide wheel can be packaged without modification to the inner wheel wells. Both the main and secondary crossmembers are stamped for structural rigidity. SBC, BBC, LS1, LS2, and LS7 engines have been designed as a direct bolt-in into this subframe.

Our subframe has been designed, engineered, and developed for the road and track. This subframe blends the benefits of current OEM technology and aftermarket performance into one product!
The subframe is available uncoated and unassembled for your SBC, BBC, or LSX engines. We also offer the subframe powdercoated satin black and assembled.
Base Shock:

• The DSE/JRI Detroit Tuned base shock is a pure blood pedigree racing shock in its most efficient form as a non-adjustable unit.
• Although non-adjustable, it shares all the increased dynamic responses of all the JRI adjustable models while providing excellent ride quality on the street.

Note:

• Subframe must ship truck freight.
• Must use at least 17 inch wheels that require a minimum inside wheel diameter of 16.250 inches.
• For competition applications, the DSE rack and pinion fluid transfer conversion kit will replace the hardlines on your DSE rack and pinion using -4 AN steel fittings. The hoses are Teflon lined to handle the high pressure demands of the steering system and come with pre-crimped stainless steel fittings to attach to the -4 AN fittings.

Detroit Speed puts a significant amount of effort into developing long-lasting, dependable products that are formulated to exceed late-model performance expectations. Our systems are designed by exceptionally qualified engineers and built by fabricators dedicated to making the best systems they possibly can. Our parts are made using state-of-the-art manufacturing technologies–CNC machining, forging, hydroforming, and more–to bring your classic muscle car to the 21st century.

Months of testing, revising, and polishing stand behind every product we make available to the public, and our test cars prove the point. Each of our development mules receive thousands of hard miles attending car shows, completing road trips, crushing autocross paddocks, and storming track days in the process. The pursuit of perfection has always been our primary goal, and it always will be. Because of this, we can confidently say our systems are the best, most comprehensive solutions to any and all your muscle car problems.
