Mr. Gasket Ultra-Seal Intake Manifold Gaskets .125 Inch Thickness 5812

Mr. Gasket Ultra-Seal Intake Manifold Gaskets .125 Inch Thickness 5812
$77.99 ea
NEWOUT OF STOCK
Model: 4011797
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

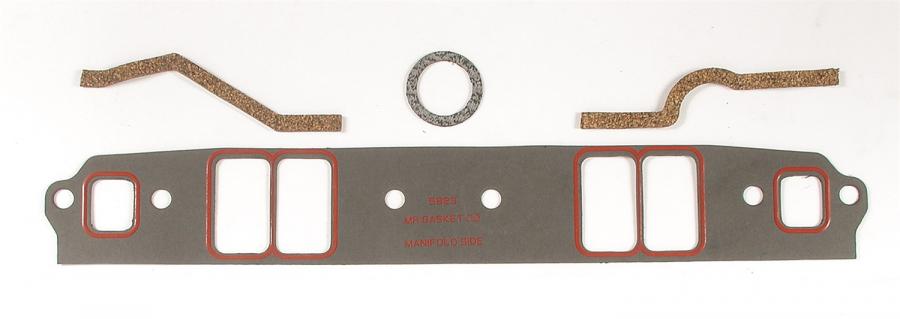

Ultra-Seal intake manifold gaskets are manufactured from cellulose/nitrile composition gasket material. Provides excellent sealing and durability. Incorporates Silicone beading around each intake and water outlet port to provide additional sealing strength on both sides of each gasket. No gasket sealer required. For OE replacement, high performance street, drag race and oval track use. Includes manifold end seals and distributor gasket.
Features:
  • Manufactured from cellulose/nitrile composition gasket material
  • Provides excellent sealing and durability
  • Silicone beading on both sides of each gasket
  • Complete with manifold end seals and distributor gasket
  • For OE replacement, high performance street, drag race and oval track use
Note: It is recommended to use gasket sealer between front and rear intake end seals and intake gasket.
Installation Notes:
Note: It is recommended to use gasket sealer between front and rear intake end seals and intake gasket.

Downloads:

Download Name File Size
97146665.pdf25.93KB

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Chevrolet Camaro 1967 5.3L / 327 / V8 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1968 5.7L / 350 / V8
5.3L / 327 / V8
5.4L / 327 / V8		 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1969 5.7L / 350 / V8 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1970 5.0L / 307 / V8
5.7L / 350 / V8		 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1971 5.0L / 307 / V8
5.7L / 350 / V8		 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1972 5.0L / 307 / V8
5.7L / 350 / V8		 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1973 5.0L / 307 / V8
5.7L / 350 / V8		 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1974 5.7L / 350 / V8 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1975 5.7L / 350 / V8 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1976 5.0L / 305 / V8
5.7L / 350 / V8		 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1977 5.0L / 305 / V8
5.7L / 350 / V8		 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1978 5.0L / 305 / V8
5.7L / 350 / V8		 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1979 5.0L / 305 / V8
5.7L / 350 / V8		 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1980 5.0L / 305 / V8
5.7L / 350 / V8		 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1981 5.0L / 305 / V8
5.7L / 350 / V8		 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1982 5.0L / 305 / V8 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1984 5.0L / 305 / V8 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1985 5.0L / 305 / V8 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1986 5.0L / 305 / V8 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1987 5.0L / 305 / V8
5.7L / 350 / V8		 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1988 5.0L / 305 / V8
5.7L / 350 / V8		 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1989 5.0L / 305 / V8
5.7L / 350 / V8		 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1990 5.0L / 305 / V8
5.7L / 350 / V8		 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1991 5.0L / 305 / V8
5.7L / 350 / V8		 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;
Pontiac Firebird 1980 5.0L / 305 / V8 ULTRA SEAL; INTAKE GASKET; PORT DIMENSIONS W-1.31 IN. X H-2.19 IN.; 1/8 IN. THICK; MEDIUM MODIFIED PORT AND BOLT LOCATIONS;

Specifications:

Emission Code 5
Engine Chevrolet Small Block Gen I
Material Ultra-seal
Packaging Retail
Part Type Engine Intake Manifold Gasket
Port Shape Rectangle
Port Size 1.31" x 2.19"
Product Type Intake Gaskets
Thickness .125"
Warranty Limited 90 Day Warranty TX, Limited 90 Day Warranty
Weight 0.5000
