Mr. Gasket Ultra-Seal Intake Manifold Gaskets 5851

Mr. Gasket Ultra-Seal Intake Manifold Gaskets 5851
$73.99 ea
NEWARRIVING SOONEstimated Ship Date 12/10/2024 (If Ordered Today)51 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/24/2024
Model: 4011820
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

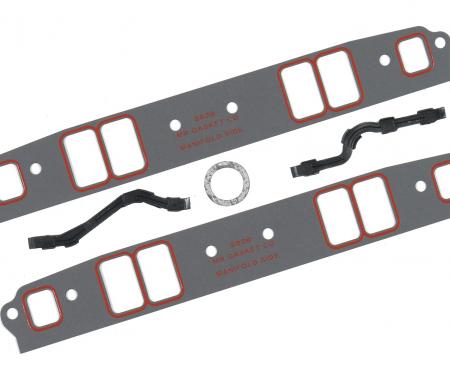

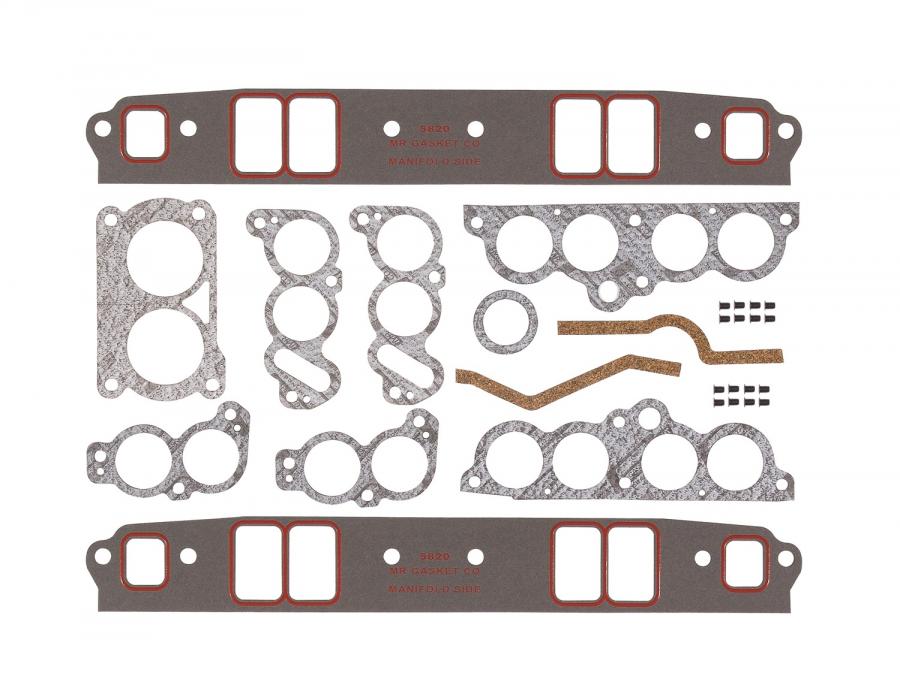

Mr. Gasket Ultra-Seal Intake Manifold Gasketss are manufactured from cellulose/nitrile composition gasket material. Provides excellent sealing and durability. Incorporates Silicone beading around each intake and water outlet port to provide additional sealing strength on both sides of each gasket. No gasket sealer required. For original equipment replacement, high performance street, drag race and oval track use. Includes manifold end seals, distributor gasket and upper TPI (tuned port injection) manifold gaskets.
Features:
  • Manufactured from cellulose/nitrile composition gasket material
  • Provides excellent sealing and durability
  • Silicone beading on both sides of each gasket
  • Complete with manifold end seals and distributor gasket
  • For OE replacement, high performance street, drag race and oval track use
Note: It is recommended to use gasket sealer between front and rear intake end seals and intake gasket.
Installation Notes:
Note: It is recommended to use gasket sealer between front and rear intake end seals and intake gasket.

Downloads:

Download Name File Size
97146665.pdf25.93KB

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Chevrolet Camaro 1985 5.0L / 305 / V8 ULTRA SEAL III; INTAKE GASKET; PORT DIMENSIONS W-1.25 IN. X H-2 IN.; INCL. UPPER RUNNER SET FOR TPI/THROTTLE BODY BASE GASKETS; STOCK PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1986 5.0L / 305 / V8 ULTRA SEAL III; INTAKE GASKET; PORT DIMENSIONS W-1.25 IN. X H-2 IN.; INCL. UPPER RUNNER SET FOR TPI/THROTTLE BODY BASE GASKETS; STOCK PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1987 5.0L / 305 / V8
5.7L / 350 / V8		 ULTRA SEAL III; INTAKE GASKET; PORT DIMENSIONS W-1.25 IN. X H-2 IN.; INCL. UPPER RUNNER SET FOR TPI/THROTTLE BODY BASE GASKETS; STOCK PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1988 5.0L / 305 / V8
5.7L / 350 / V8		 ULTRA SEAL III; INTAKE GASKET; PORT DIMENSIONS W-1.25 IN. X H-2 IN.; INCL. UPPER RUNNER SET FOR TPI/THROTTLE BODY BASE GASKETS; STOCK PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1989 5.0L / 305 / V8
5.7L / 350 / V8		 ULTRA SEAL III; INTAKE GASKET; PORT DIMENSIONS W-1.25 IN. X H-2 IN.; INCL. UPPER RUNNER SET FOR TPI/THROTTLE BODY BASE GASKETS; STOCK PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1990 5.0L / 305 / V8
5.7L / 350 / V8		 ULTRA SEAL III; INTAKE GASKET; PORT DIMENSIONS W-1.25 IN. X H-2 IN.; INCL. UPPER RUNNER SET FOR TPI/THROTTLE BODY BASE GASKETS; STOCK PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1991 5.0L / 305 / V8
5.7L / 350 / V8		 ULTRA SEAL III; INTAKE GASKET; PORT DIMENSIONS W-1.25 IN. X H-2 IN.; INCL. UPPER RUNNER SET FOR TPI/THROTTLE BODY BASE GASKETS; STOCK PORT AND BOLT LOCATIONS;
Chevrolet Camaro 1992 5.0L / 305 / V8
5.7L / 350 / V8		 ULTRA SEAL III; INTAKE GASKET; PORT DIMENSIONS W-1.25 IN. X H-2 IN.; INCL. UPPER RUNNER SET FOR TPI/THROTTLE BODY BASE GASKETS; STOCK PORT AND BOLT LOCATIONS;
Pontiac Firebird 1985 5.0L / 305 / V8 ULTRA SEAL III; INTAKE GASKET; PORT DIMENSIONS W-1.25 IN. X H-2 IN.; INCL. UPPER RUNNER SET FOR TPI/THROTTLE BODY BASE GASKETS; STOCK PORT AND BOLT LOCATIONS;
Pontiac Firebird 1986 5.0L / 305 / V8 ULTRA SEAL III; INTAKE GASKET; PORT DIMENSIONS W-1.25 IN. X H-2 IN.; INCL. UPPER RUNNER SET FOR TPI/THROTTLE BODY BASE GASKETS; STOCK PORT AND BOLT LOCATIONS;
Pontiac Firebird 1987 5.7L / 350 / V8
5.0L / 305 / V8		 ULTRA SEAL III; INTAKE GASKET; PORT DIMENSIONS W-1.25 IN. X H-2 IN.; INCL. UPPER RUNNER SET FOR TPI/THROTTLE BODY BASE GASKETS; STOCK PORT AND BOLT LOCATIONS;
Pontiac Firebird 1988 5.7L / 350 / V8
5.0L / 305 / V8		 ULTRA SEAL III; INTAKE GASKET; PORT DIMENSIONS W-1.25 IN. X H-2 IN.; INCL. UPPER RUNNER SET FOR TPI/THROTTLE BODY BASE GASKETS; STOCK PORT AND BOLT LOCATIONS;
Pontiac Firebird 1989 5.7L / 350 / V8
5.0L / 305 / V8		 ULTRA SEAL III; INTAKE GASKET; PORT DIMENSIONS W-1.25 IN. X H-2 IN.; INCL. UPPER RUNNER SET FOR TPI/THROTTLE BODY BASE GASKETS; STOCK PORT AND BOLT LOCATIONS;
Pontiac Firebird 1990 5.7L / 350 / V8
5.0L / 305 / V8		 ULTRA SEAL III; INTAKE GASKET; PORT DIMENSIONS W-1.25 IN. X H-2 IN.; INCL. UPPER RUNNER SET FOR TPI/THROTTLE BODY BASE GASKETS; STOCK PORT AND BOLT LOCATIONS;
Pontiac Firebird 1991 5.7L / 350 / V8
5.0L / 305 / V8		 ULTRA SEAL III; INTAKE GASKET; PORT DIMENSIONS W-1.25 IN. X H-2 IN.; INCL. UPPER RUNNER SET FOR TPI/THROTTLE BODY BASE GASKETS; STOCK PORT AND BOLT LOCATIONS;

Specifications:

Emission Code 5
Engine Chevrolet Small Block Gen I
Material Ultra-seal
Packaging Retail
Part Type Engine Intake Manifold Gasket
Port Shape Rectangle
Port Size 1.25" x 2.00"
Product Type Intake Gaskets
Thickness .060"
Warranty Limited 90 Day Warranty TX, Limited 90 Day Warranty
Weight 0.4300
