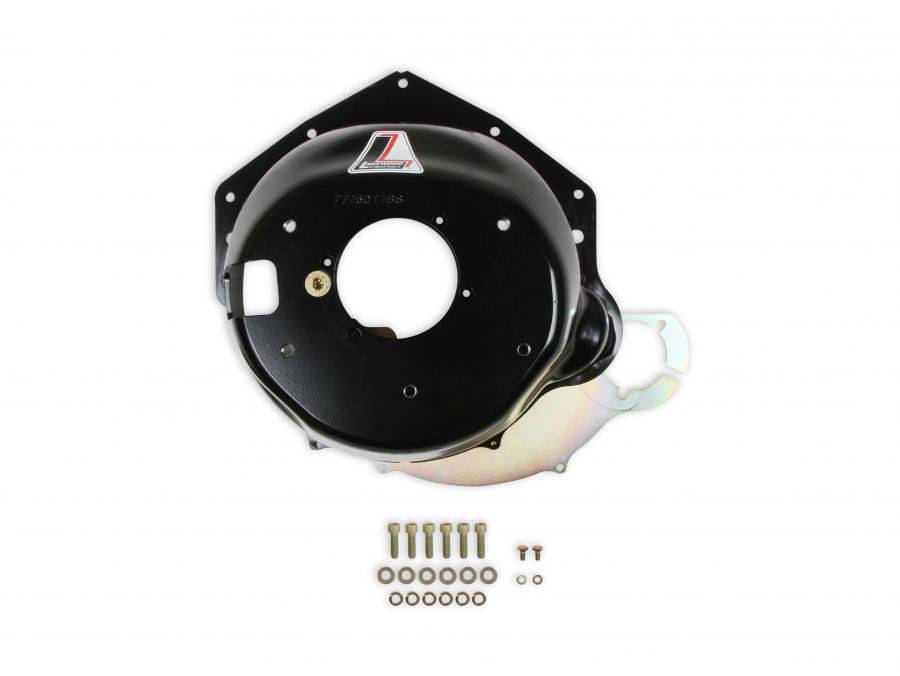

Lakewood Bellhousing, Chevy 77-150

Name: Lakewood Bellhousing, Chevy 77-150
Brand: Lakewood
SKU: 4010539
Price: 1164.99 CAD
Availability: InStock

$1,164.99 ea

NEWARRIVING SOONEstimated Ship Date 12/09/2024 (If Ordered Today)13 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/20/2024

Model: 4010539

0 reviewsWrite a Review Add to Wish List

Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.

CALL US
877.589.9860

Description Vehicle Fitment Downloads Video Specifications Reviews (0) Product Q&A Related Products

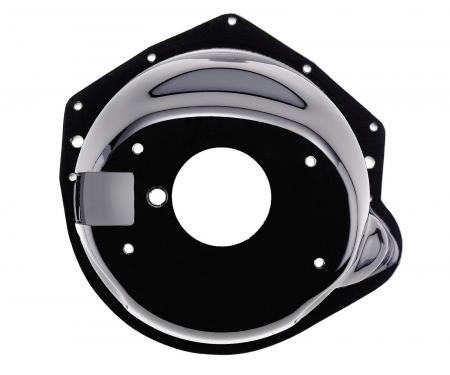

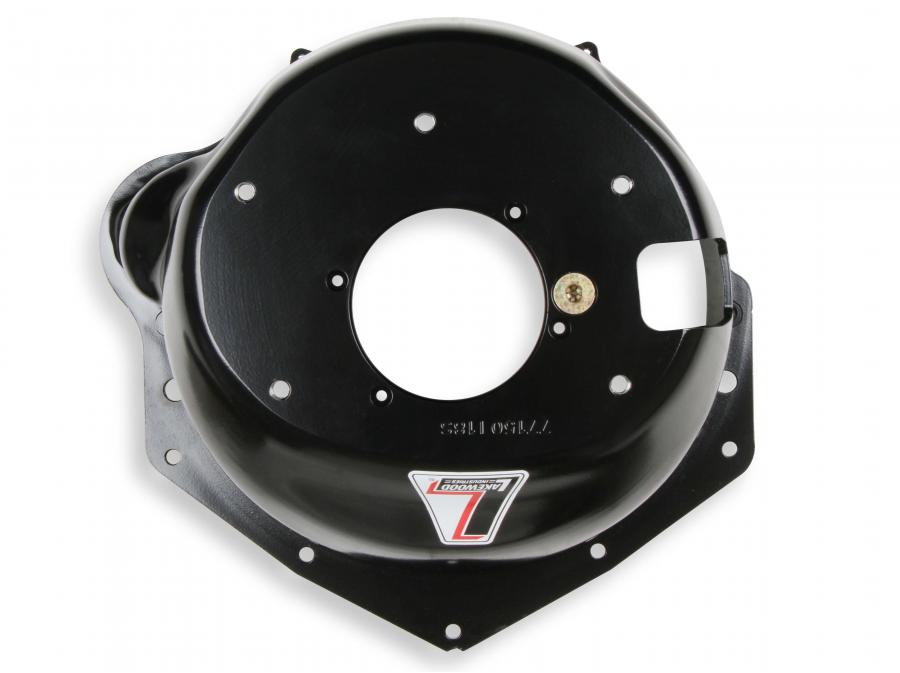

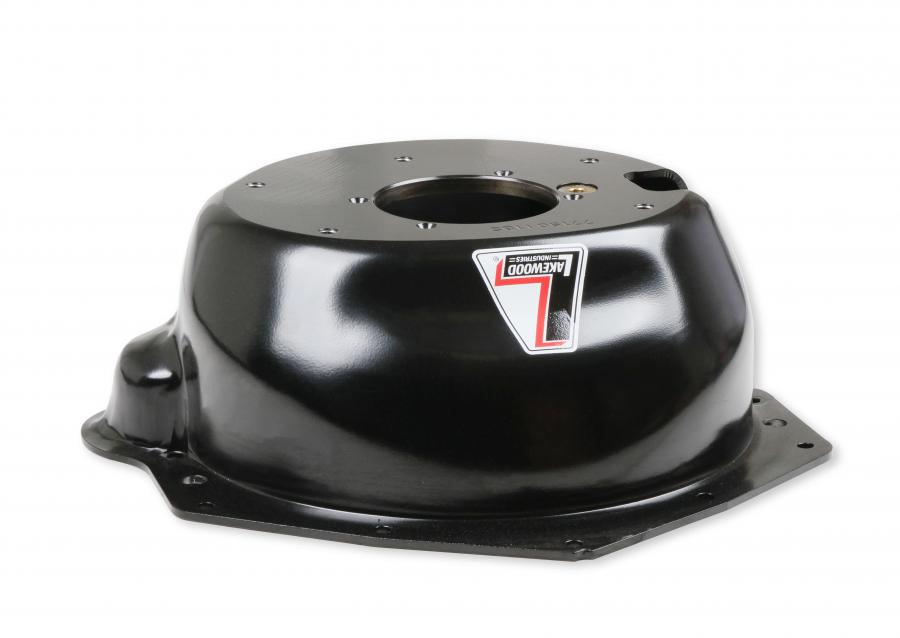

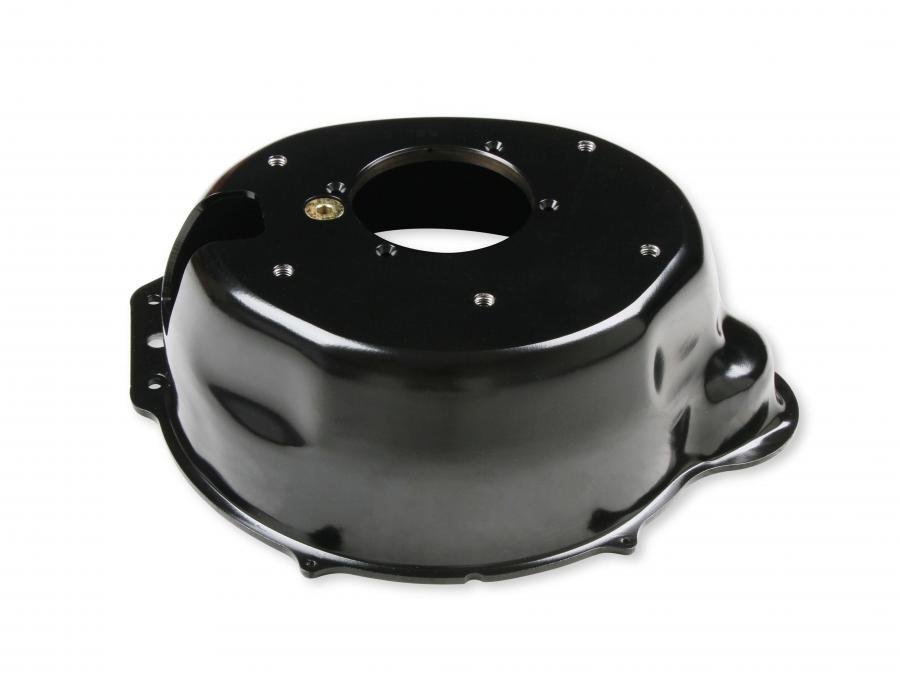

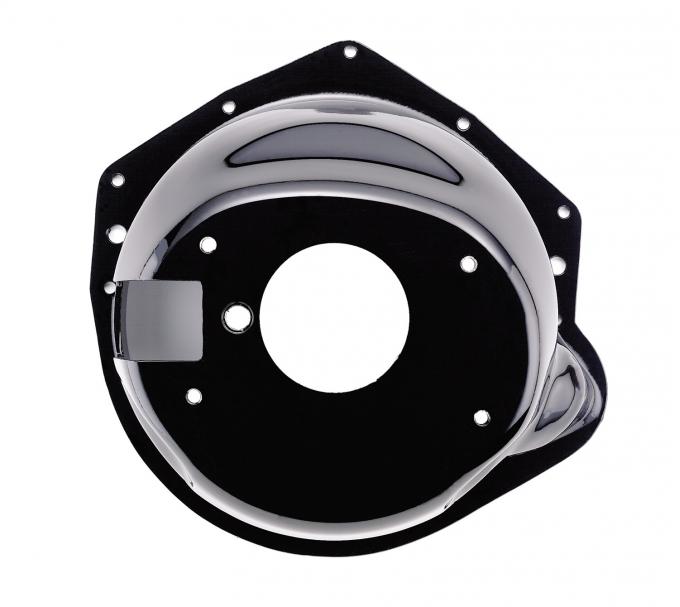

The Lakewood 77-150 bellhousing connects small block and big block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO transmissions. This bellhousing is designed to fit GM full and midsized vehicles from '58 - '87. This bellhousing is not S.F.I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. The adapter bellhousing is an excellent choice for street rods, street machines, or truck applications where the use of a S.F.I. bellhousing is not necessary. This bellhousing does not include or accept an engine block plate.

Features:

Designed For Mechanical Fork Linkage
Bellhousing Depth: 6.312 in
Clutch Fork Opening: 2.5 In X 3.75 In
Transmission Bore Diameter 4.684 In
Hydro formed Construction
Made In The USA
Works with 153 or 168 Flywheel

Downloads:

Download Name	File Size
lakewood_instructions_quicktime_bellhousings.pdf	461.94KB

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.

Make	Model	Years	Engine	Fitment Notes
Chevrolet	Camaro	1967	5.3L / 327 / V8 6.5L / 396 / V8 4.9L / 302 / V8 5.7L / 350 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet	Camaro	1968	5.3L / 327 / V8 5.4L / 327 / V8 6.5L / 396 / V8 5.7L / 350 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet	Camaro	1969	6.5L / 396 / V8 5.7L / 350 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet	Camaro	1970	6.6L / 402 / V8 5.0L / 307 / V8 5.7L / 350 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet	Camaro	1971	6.6L / 402 / V8 5.0L / 307 / V8 5.7L / 350 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet	Camaro	1972	6.6L / 402 / V8 5.0L / 307 / V8 5.7L / 350 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet	Camaro	1973	5.0L / 307 / V8 5.7L / 350 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet	Camaro	1974	5.7L / 350 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet	Camaro	1975	5.7L / 350 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet	Camaro	1976	5.7L / 350 / V8 5.0L / 305 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet	Camaro	1977	5.7L / 350 / V8 5.0L / 305 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet	Camaro	1978	5.7L / 350 / V8 5.0L / 305 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet	Camaro	1979	5.7L / 350 / V8 5.0L / 305 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet	Camaro	1980	4.4L / 267 / V8 5.7L / 350 / V8 5.0L / 305 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet	Camaro	1981	4.4L / 267 / V8 5.7L / 350 / V8 5.0L / 305 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Pontiac	Firebird	1977	5.0L / 305 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Pontiac	Firebird	1978	5.0L / 305 / V8 5.7L / 350 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Pontiac	Firebird	1979	5.0L / 305 / V8 5.7L / 350 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Pontiac	Firebird	1980	5.0L / 305 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Pontiac	Firebird	1981	5.0L / 305 / V8	ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;

Specifications:

Clutch Diameter	11"
Clutch Operation	Hydraulic or GM Mechanical
Color	Black
Emission Code	5
Engine	Chevrolet Small Block Gen I, Chevy Big Block V8
Engine Make	Chevrolet
Flywheel	153/168 Tooth
Height	6.3"
Make	Chevrolet
Material	Steel
Part Type	Transmission Bell Housing
Product Type	Bellhousing
SFI Approved	No
SFI Certification	NONE
Trans. Bore Diameter	4.685
Transmission	BorgWarner, Muncie, T10, TKX GM, TKO 500/600 GM, Saginaw
Transmission Type	Manual
Weight	32Lbs
