Download Name | File Size |
199r11317.pdf | 165.27KB |
Make | Model | Submodel | Years | Engine |
Chevrolet | Camaro | Indianapolis 500 Pace Car | 1993 | 5.7L / 350 / V8 |
Chevrolet | Camaro | Z28 | 1993 | 5.7L / 350 / V8 |
Chevrolet | Camaro | Z28 | 1994 | 5.7L / 350 / V8 |
Chevrolet | Camaro | Z28 | 1995 | 5.7L / 350 / V8 |
Chevrolet | Camaro | Z28 | 1996 | 5.7L / 350 / V8 |
Chevrolet | Camaro | Z28 | 1997 | 5.7L / 350 / V8 |
Pontiac | Firebird | Formula | 1993 | 5.7L / 350 / V8 |
Pontiac | Firebird | Formula | 1994 | 5.7L / 350 / V8 |
Pontiac | Firebird | Formula | 1995 | 5.7L / 350 / V8 |
Pontiac | Firebird | Formula | 1996 | 5.7L / 350 / V8 |
Pontiac | Firebird | Formula | 1997 | 5.7L / 350 / V8 |
Pontiac | Firebird | Trans Am GT | 1994 | 5.7L / 350 / V8 |
Pontiac | Firebird | Trans Am | 1993 | 5.7L / 350 / V8 |
Pontiac | Firebird | Trans Am | 1994 | 5.7L / 350 / V8 |
Pontiac | Firebird | Trans Am | 1995 | 5.7L / 350 / V8 |
Pontiac | Firebird | Trans Am | 1996 | 5.7L / 350 / V8 |
Pontiac | Firebird | Trans Am | 1997 | 5.7L / 350 / V8 |
Alignment Tool Included | Yes |
Application | GM |
Disc Diameter | 11 |
Disc Material | Sintered Metallic |
Disc Style | Spring Hub |
Emission Code | 5 |
Input Shaft Diameter | 1-1/8 in. |
Input Spline | 26 |
Max Horsepower Rating | 650 |

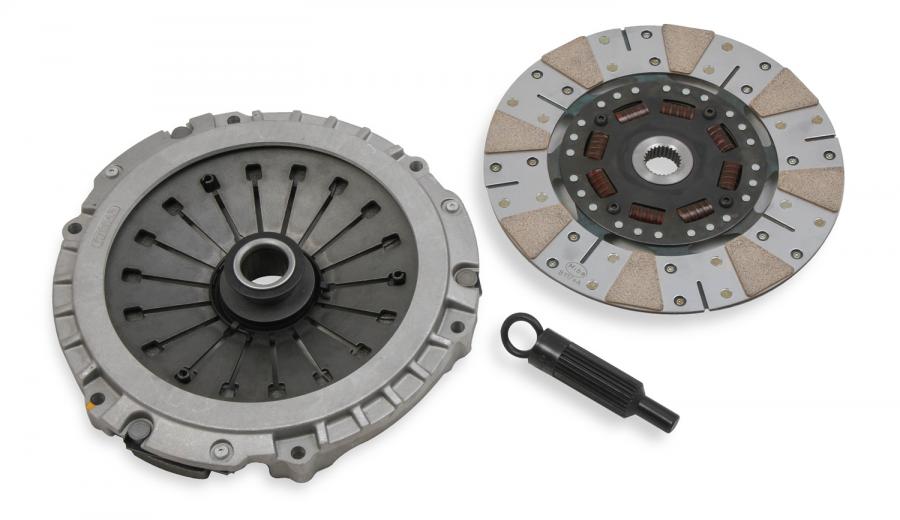

Part Type | Clutch Kit |
Pilot Bushing Included | No |
Pressure Plate Style | Diaphragm |
Product Type | Clutch Kits |
Throwout Bearing I.D. (inches) | 1.318 |
Throwout Bearing Included | Yes |
Warranty | Limited 90 Day Warranty TX, Limited 90 Day Warranty |
