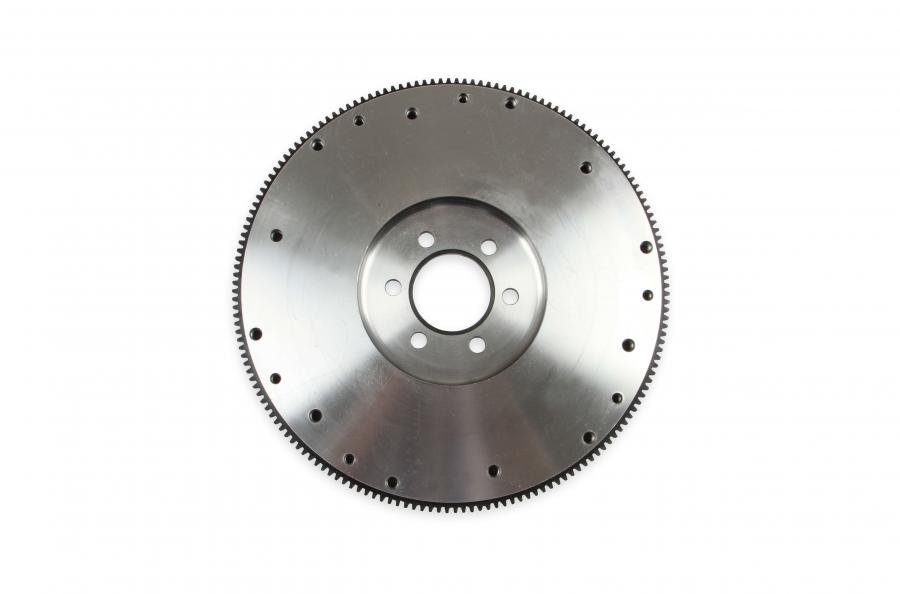

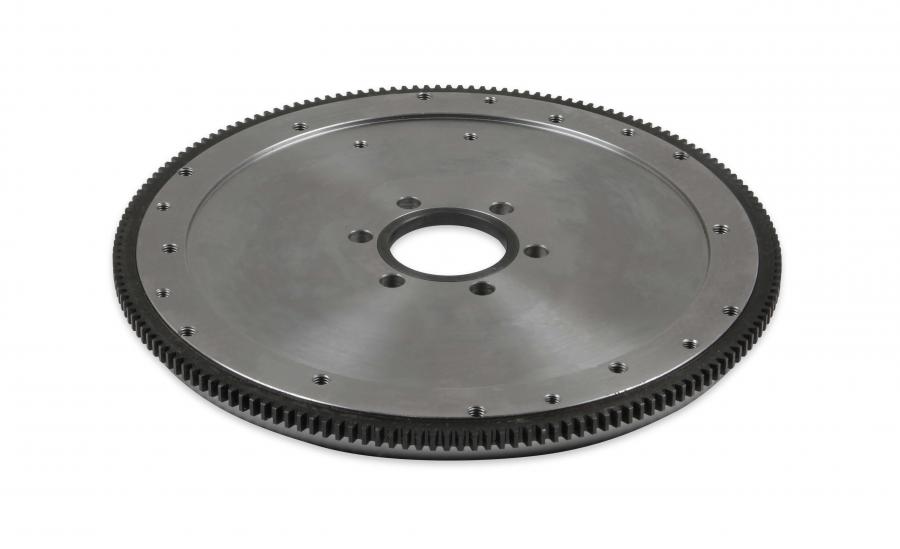

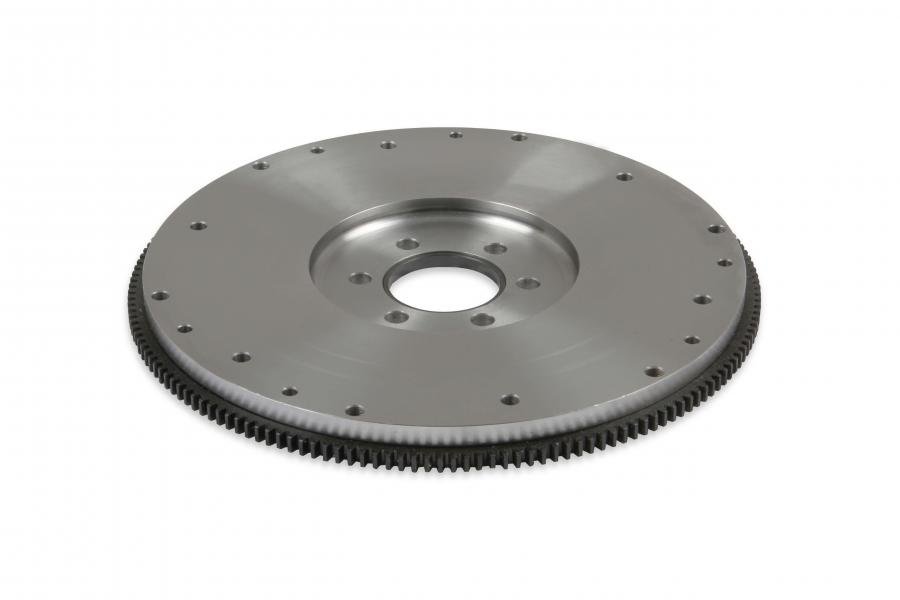

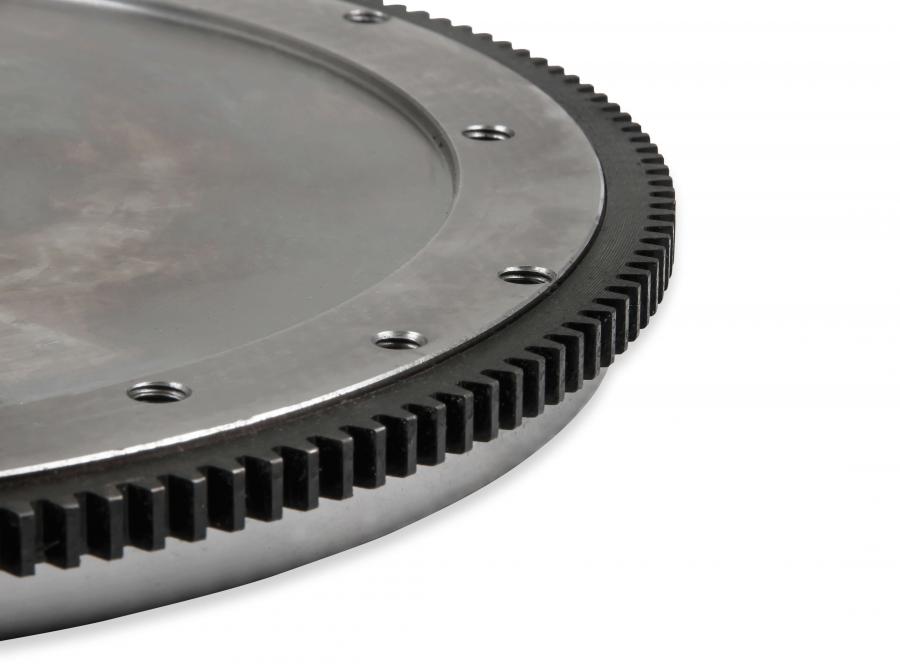

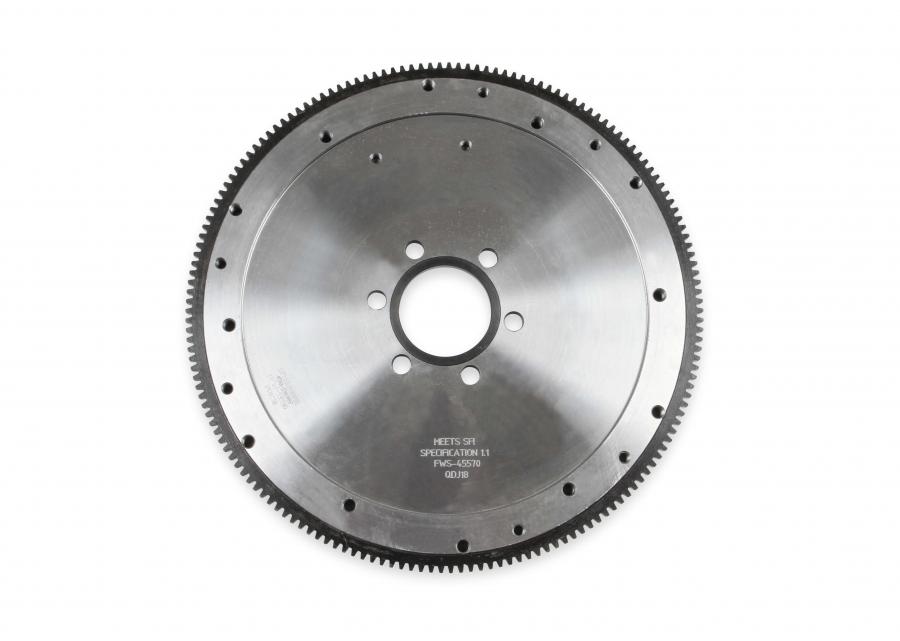

Hays Billet Steel SFI Certified Flywheel, Pontiac 13-130

Hays Billet Steel SFI Certified Flywheel, Pontiac 13-130
Hays Billet Steel SFI Certified Flywheel, Pontiac 13-130Hays Billet Steel SFI Certified Flywheel, Pontiac 13-130Hays Billet Steel SFI Certified Flywheel, Pontiac 13-130Hays Billet Steel SFI Certified Flywheel, Pontiac 13-130
$861.99 ea
NEWARRIVING SOONEstimated Ship Date 12/11/2024 (If Ordered Today)11 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/25/2024
Model: 4006811
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
These SFI-Rated flywheels are engineered to handle extreme duty applications and designed to take the punishment of todays high horsepower engines. Our billet steel flywheels are CAD engineered and precision CNC machined to strict tolerances. For internally balanced engines. Includes a removable black insert that allows this to fit the 2.5" crank and remove to fit the 2.75".
Features:
  • Billet steel construction
  • SFI certified
  • 30 lb flywheel with 166 tooth count
  • Fits 10.5" or 11" clutches
  • 2.50" register bore. Includes an installed center ring that can be removed for 2.75"
Pontiac changed the crankshaft register partway through 1976 on the 350 and 400 engines. The only way to be sure of which flywheel you need is to measure the register (or snout) at the end of the crankshaft where the flywheel mounts. All 455 engines use the larger register. Includes a removable black insert that allows this to fit the 2.5" crank and remove to fit the 2.75".
Installation Notes:
Pontiac changed the crankshaft register partway through 1976 on the 350 and 400 engines. The only way to be sure of which flywheel you need is to measure the register (or snout) at the end of the crankshaft where the flywheel mounts. All 455 engines use the larger register. Includes a removable black insert that allows this to fit the 2.5" crank and remove to fit the 2.75".

Downloads:

Download Name File Size
hays_instructions_installation_troubleshooting_clutches_flywheels.pdf276.41KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Engine Fitment Notes
Pontiac Firebird 400 1967 6.6L / 400 / V8
Pontiac Firebird 400 1968 6.6L / 400 / V8
Pontiac Firebird 400 1969 6.6L / 400 / V8
Pontiac Firebird Base 1967 5.3L / 326 / V8
6.6L / 400 / V8
Pontiac Firebird Base 1968 6.6L / 400 / V8
Pontiac Firebird Base 1969 6.6L / 400 / V8
Pontiac Firebird Base 1970 6.6L / 400 / V8
Pontiac Firebird Base 1971 7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Base 1972 7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Base 1973 7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Base 1974 7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Base 1975 6.6L / 400 / V8
Pontiac Firebird Base 1976 6.6L / 400 / V8
Pontiac Firebird Base 1977 6.6L / 400 / V8
Pontiac Firebird Esprit 1970 6.6L / 400 / V8
Pontiac Firebird Esprit 1971 7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Esprit 1972 7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Esprit 1973 7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Esprit 1974 7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Esprit 1976 6.6L / 400 / V8
Pontiac Firebird Formula 1970 6.6L / 400 / V8
Pontiac Firebird Formula 1971 7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Formula 1972 7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Formula 1973 7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Formula 1974 7.5L / 455 / V8
6.6L / 400 / V8
Pontiac Firebird Formula 1975 6.6L / 400 / V8
Pontiac Firebird Formula 1976 6.6L / 400 / V8
Pontiac Firebird Formula 1977 6.6L / 400 / V8
Pontiac Firebird Formula 1978 6.6L / 400 / V8
Pontiac Firebird Formula 1979 6.6L / 400 / V8
Pontiac Firebird HO 1967 6.6L / 400 / V8
Pontiac Firebird Trans Am 1969 6.6L / 400 / V8
Pontiac Firebird Trans Am 1970 6.6L / 400 / V8
Pontiac Firebird Trans Am 1971 6.6L / 400 / V8
7.5L / 455 / V8
Pontiac Firebird Trans Am 1972 6.6L / 400 / V8
7.5L / 455 / V8
Pontiac Firebird Trans Am 1973 6.6L / 400 / V8
7.5L / 455 / V8
Pontiac Firebird Trans Am 1974 6.6L / 400 / V8
7.5L / 455 / V8
Pontiac Firebird Trans Am 1975 6.6L / 400 / V8
7.5L / 455 / V8
Pontiac Firebird Trans Am 1976 6.6L / 400 / V8
7.5L / 455 / V8
Pontiac Firebird Trans Am 1977 6.6L / 400 / V8
Pontiac Firebird Trans Am 1978 6.6L / 400 / V8
Pontiac Firebird Trans Am 1979 6.6L / 400 / V8
Pontiac Firebird 1967 5.3L / 326 / V8 PERFORMANCE; FLYWHEEL; STEEL; NEUTRAL INTERNAL BALANCE; W/LARGE REGISTER BORE; 166 GEAR TEETH; 30 LBS.;
Pontiac Firebird 1968 5.7L / 350 / V8
6.6L / 400 / V8		 PERFORMANCE; FLYWHEEL; STEEL; NEUTRAL INTERNAL BALANCE; W/LARGE REGISTER BORE; 166 GEAR TEETH; 30 LBS.;
Pontiac Firebird 1969 5.7L / 350 / V8
6.6L / 400 / V8		 PERFORMANCE; FLYWHEEL; STEEL; NEUTRAL INTERNAL BALANCE; W/LARGE REGISTER BORE; 166 GEAR TEETH; 30 LBS.;
Pontiac Firebird 1970 5.7L / 350 / V8
6.6L / 400 / V8		 PERFORMANCE; FLYWHEEL; STEEL; NEUTRAL INTERNAL BALANCE; W/LARGE REGISTER BORE; 166 GEAR TEETH; 30 LBS.;
Pontiac Firebird 1971 5.7L / 350 / V8
7.5L / 455 / V8
6.6L / 400 / V8		 PERFORMANCE; FLYWHEEL; STEEL; NEUTRAL INTERNAL BALANCE; W/LARGE REGISTER BORE; 166 GEAR TEETH; 30 LBS.;
Pontiac Firebird 1972 5.7L / 350 / V8
7.5L / 455 / V8
6.6L / 400 / V8		 PERFORMANCE; FLYWHEEL; STEEL; NEUTRAL INTERNAL BALANCE; W/LARGE REGISTER BORE; 166 GEAR TEETH; 30 LBS.;
Pontiac Firebird 1973 5.7L / 350 / V8
7.5L / 455 / V8
6.6L / 400 / V8		 PERFORMANCE; FLYWHEEL; STEEL; NEUTRAL INTERNAL BALANCE; W/LARGE REGISTER BORE; 166 GEAR TEETH; 30 LBS.;
Pontiac Firebird 1974 5.7L / 350 / V8
7.5L / 455 / V8
6.6L / 400 / V8		 PERFORMANCE; FLYWHEEL; STEEL; NEUTRAL INTERNAL BALANCE; W/LARGE REGISTER BORE; 166 GEAR TEETH; 30 LBS.;
Pontiac Firebird 1975 5.7L / 350 / V8
7.5L / 455 / V8
6.6L / 400 / V8		 PERFORMANCE; FLYWHEEL; STEEL; NEUTRAL INTERNAL BALANCE; W/LARGE REGISTER BORE; 166 GEAR TEETH; 30 LBS.;
Pontiac Firebird 1976 5.7L / 350 / V8
7.5L / 455 / V8
6.6L / 400 / V8		 PERFORMANCE; FLYWHEEL; STEEL; NEUTRAL INTERNAL BALANCE; W/LARGE REGISTER BORE; 166 GEAR TEETH; 30 LBS.;

Specifications:

# of Teeth 166
Application Pontiac
Center Bore (Register Diameter) 2.50" and 2.75" after removing insert
Emission Code 5
Engine Balance Internal
Material Steel
Part Type Clutch Flywheel
Product Type Flywheels
SFI Approved Yes
SFI Certification 1.1
Warranty Limited 90 Day Warranty TX, Limited 90 Day Warranty

Reviews:

Write a Review
* Your Name:
* Email (This will not be displayed)
* Rating:
Comments:

Ask a question about

Hays Billet Steel SFI Certified Flywheel, Pontiac 13-130:
Reason for Inquiry:

Related Products

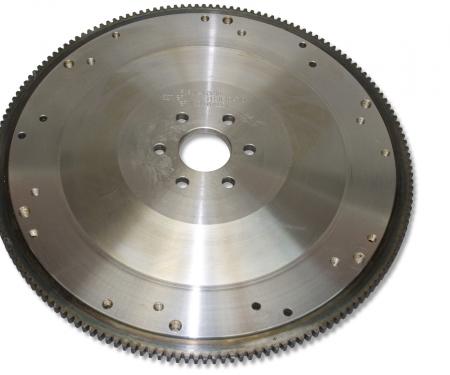

Hays Billet Aluminum SFI Certified Flywheel, Big Block Chevrolet 20-237
Hays Billet Aluminum SFI Certified Flywheel, Big Block Chevrolet 20-237
Model: 4006822
Condition: NEW
$1,089.99 ea

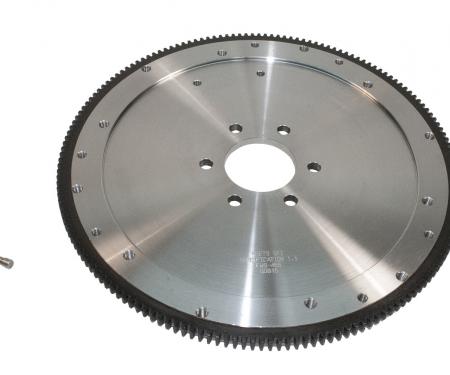

Hays Billet Steel SFI Certified Flywheel, Ford Modular V8 12-830
Hays Billet Steel SFI Certified Flywheel, Ford Modular V8 12-830
Model: 4006806
Condition: NEW
$842.99 ea

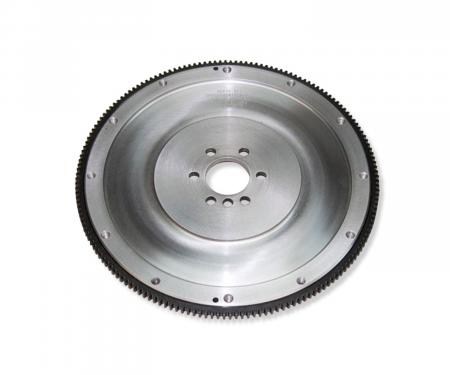

Hays Billet Steel SFI Certified Flywheel, GM LS Engines 10-730
