Hays Street 650 Clutch Kit, GM 92-1002

Hays Street 650 Clutch Kit, GM 92-1002
Hays Street 650 Clutch Kit, GM 92-1002Hays Street 650 Clutch Kit, GM 92-1002Hays Street 650 Clutch Kit, GM 92-1002Hays Street 650 Clutch Kit, GM 92-1002Hays Street 650 Clutch Kit, GM 92-1002Hays Street 650 Clutch Kit, GM 92-1002Hays Street 650 Clutch Kit, GM 92-1002Hays Street 650 Clutch Kit, GM 92-1002Hays Street 650 Clutch Kit, GM 92-1002Hays Street 650 Clutch Kit, GM 92-1002Hays Street 650 Clutch Kit, GM 92-1002Hays Street 650 Clutch Kit, GM 92-1002Hays Street 650 Clutch Kit, GM 92-1002
$1,344.99 ea
NEWARRIVING SOONEstimated Ship Date 12/10/2024 (If Ordered Today)3 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/23/2024
Model: 3316520
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

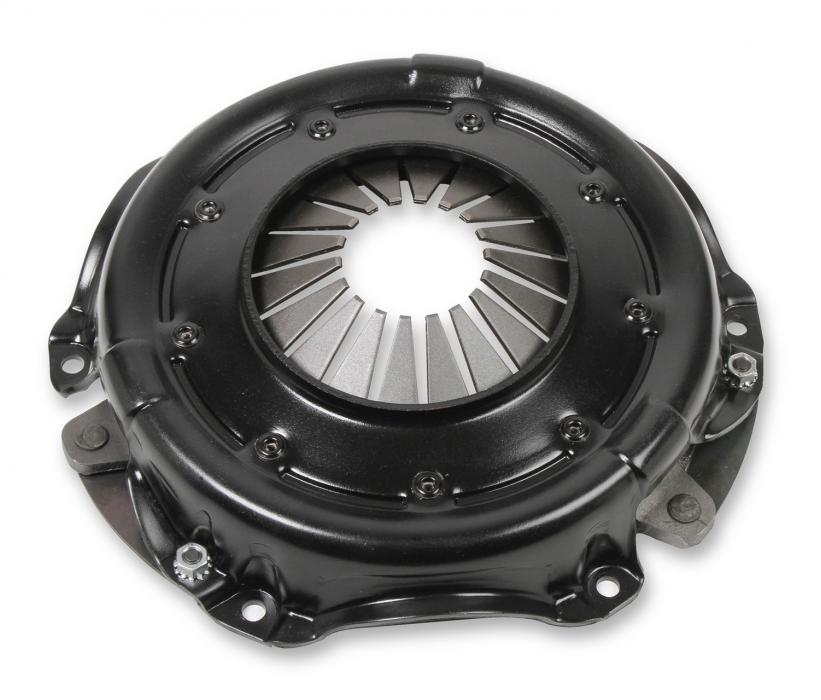

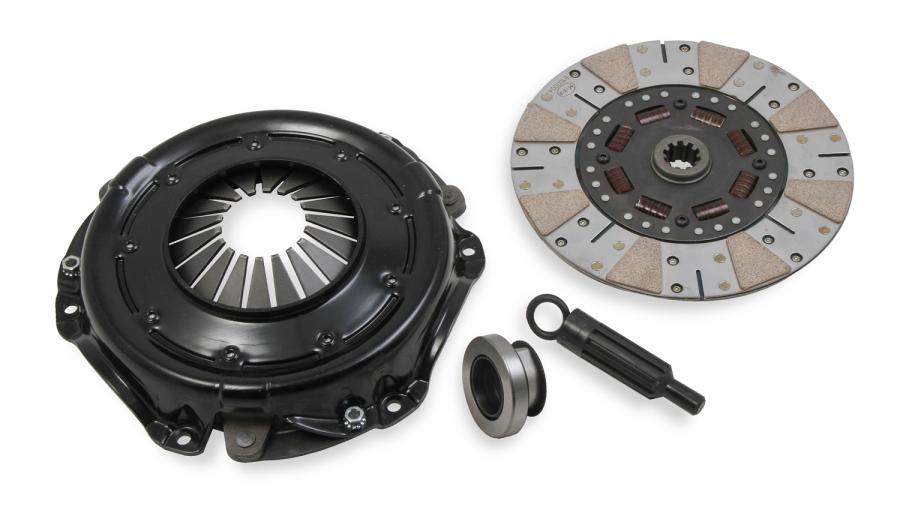

Hays Street 650 single disc kits are designed handle highly modified engines up to 650 naturally aspirated horsepower (600HP for forced induction & nitrous combinations). Designed as a true Street/Strip clutch for spirited high performance driving or frequent track use. The high performance disc utilized in the Street 650 has an 8-spring hub with encapsulated damper springs and a sintered metallic friction surface. The encapsulated spring can handle 3 times the shock load versus a standard coil spring. Sintered metallic material provides a degree of slippage on vehicle launch to prevent violent engagement characteristics found in paddle-style metallic discs. Each kit includes pressure plate, clutch disc, throwout bearing, alignment tool, and instructions.
Features:
  • Designed for power levels up to 650 naturally aspirated horsepower (600 HP for forced induction/nitrous)
  • True “Street/Strip” clutch kit for spirited street driving and frequent track use

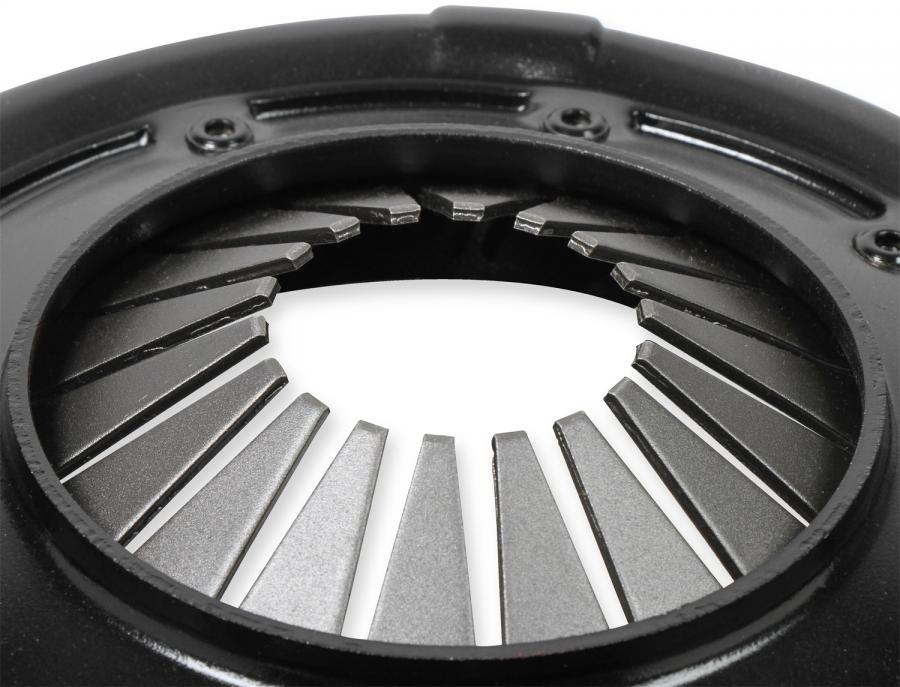

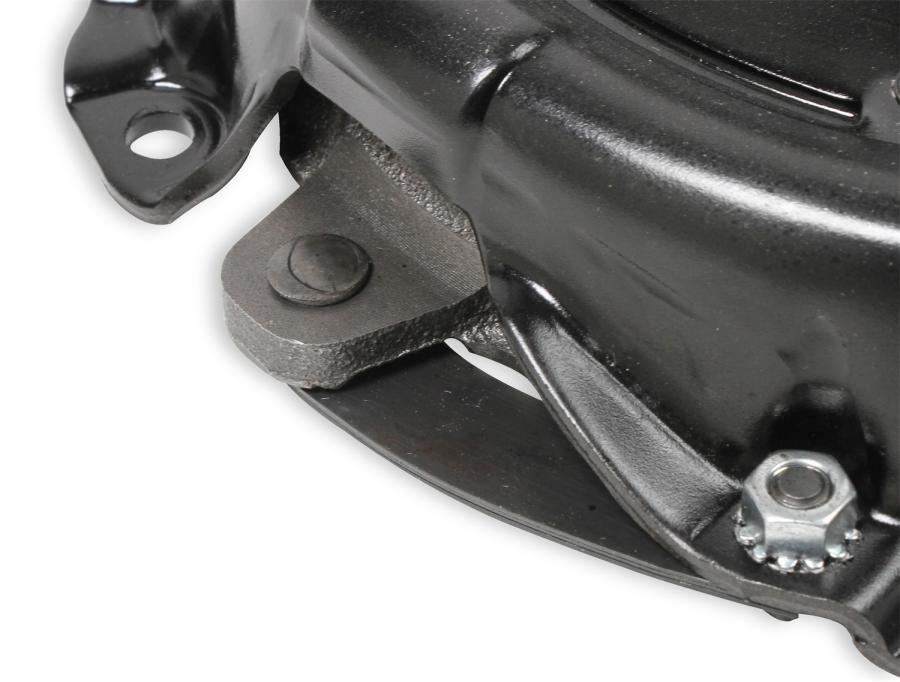

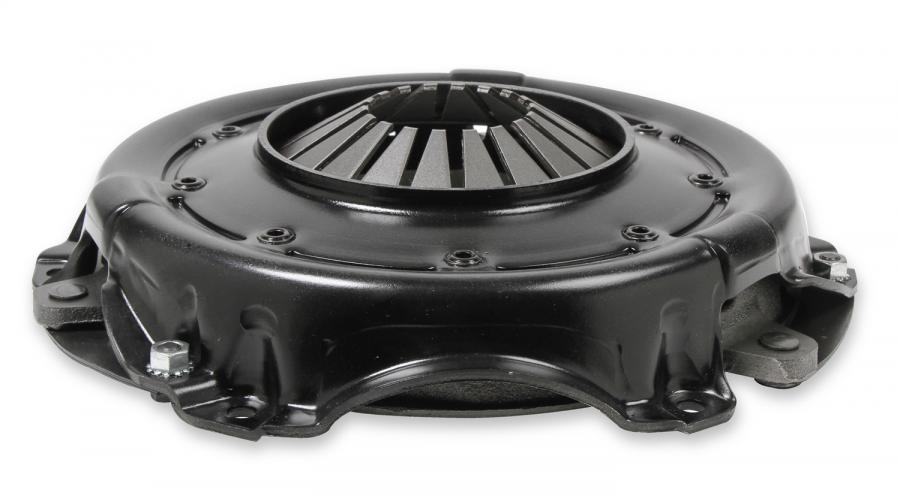

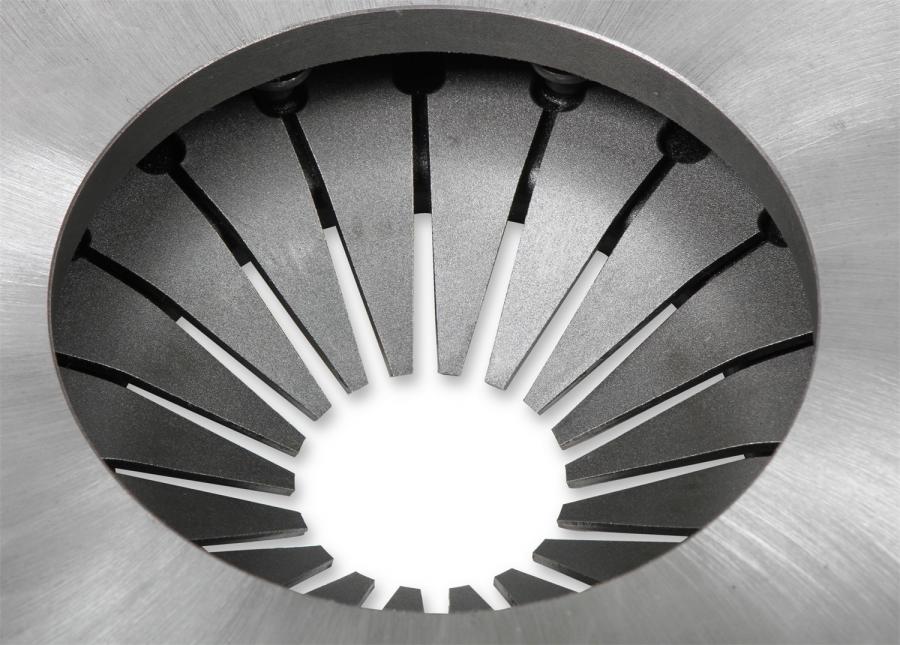

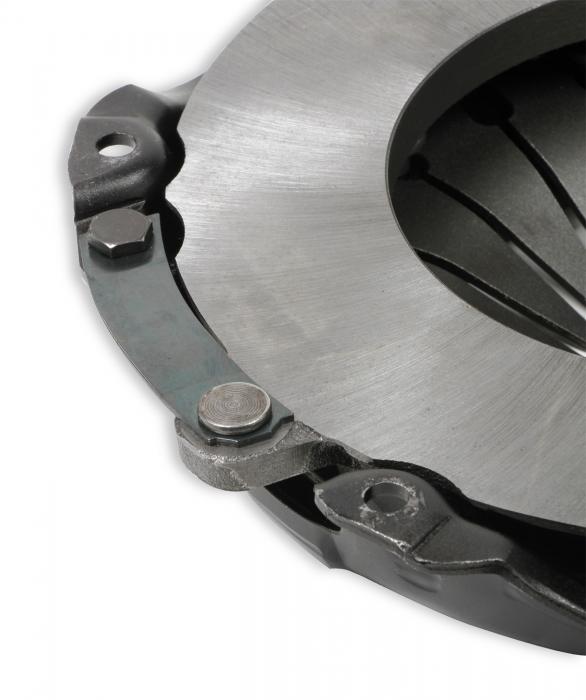

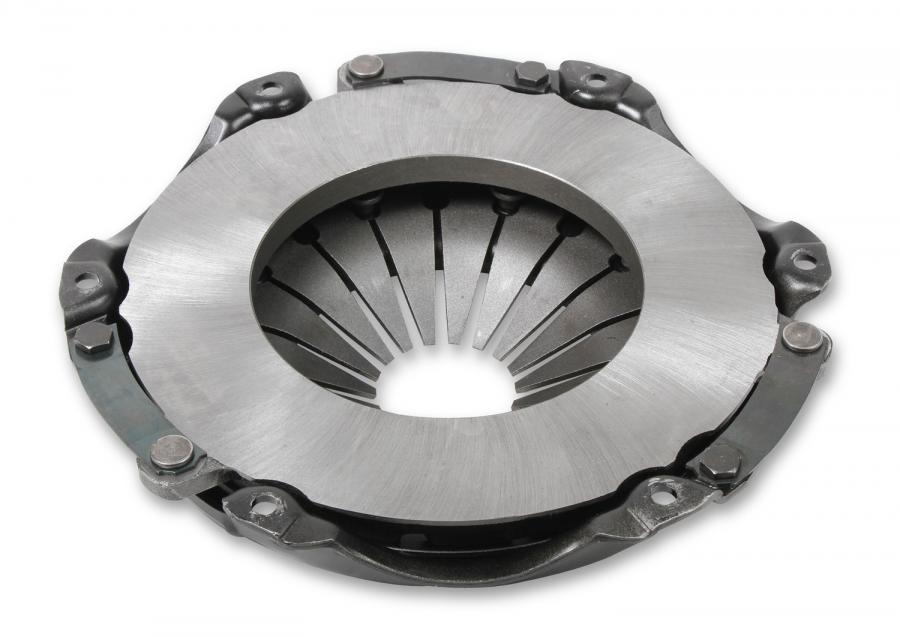

  • Pressure plate offers 30% more clamping force than stock

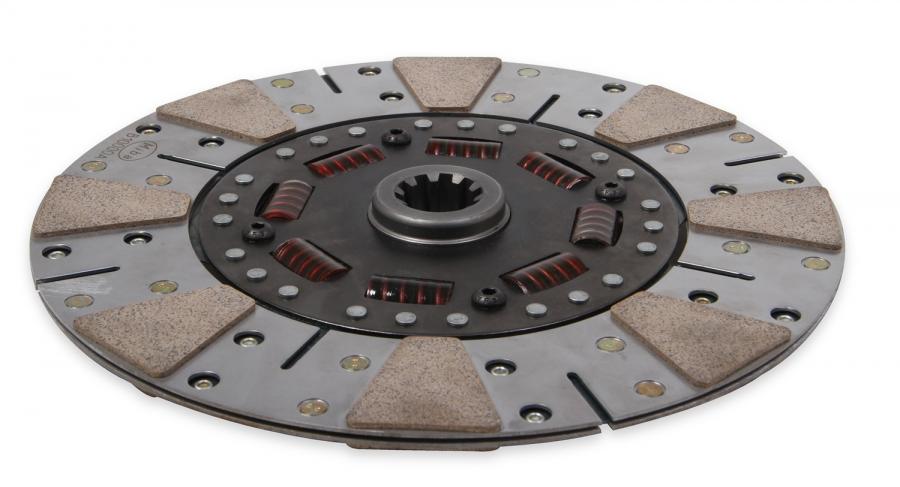

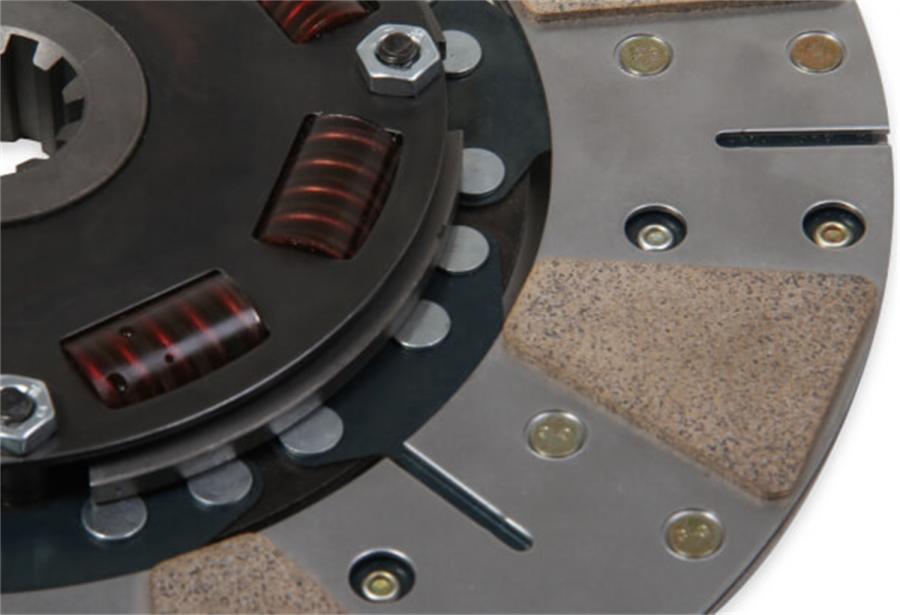

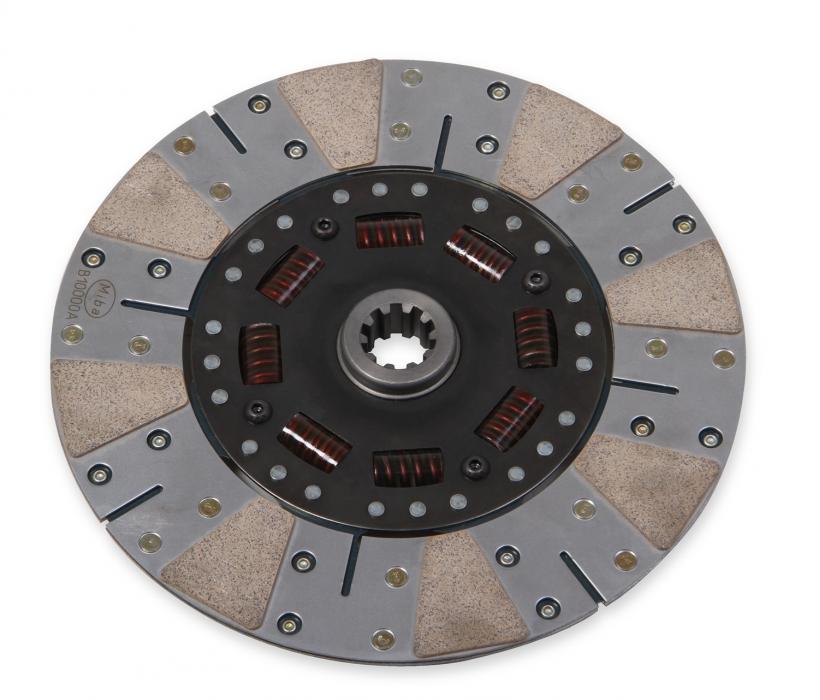

  • Sintered metallic disc friction surface used for smoother engagement during vehicle launch

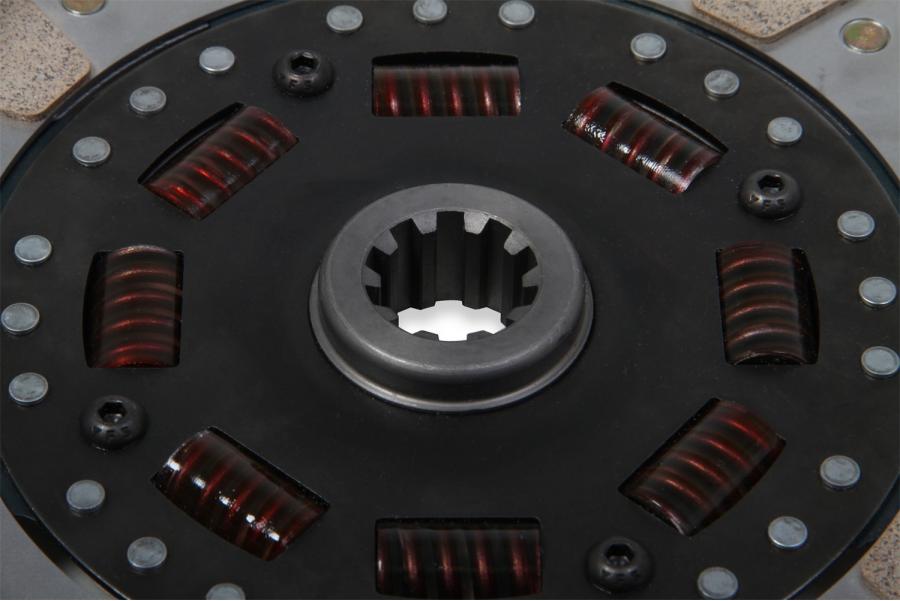

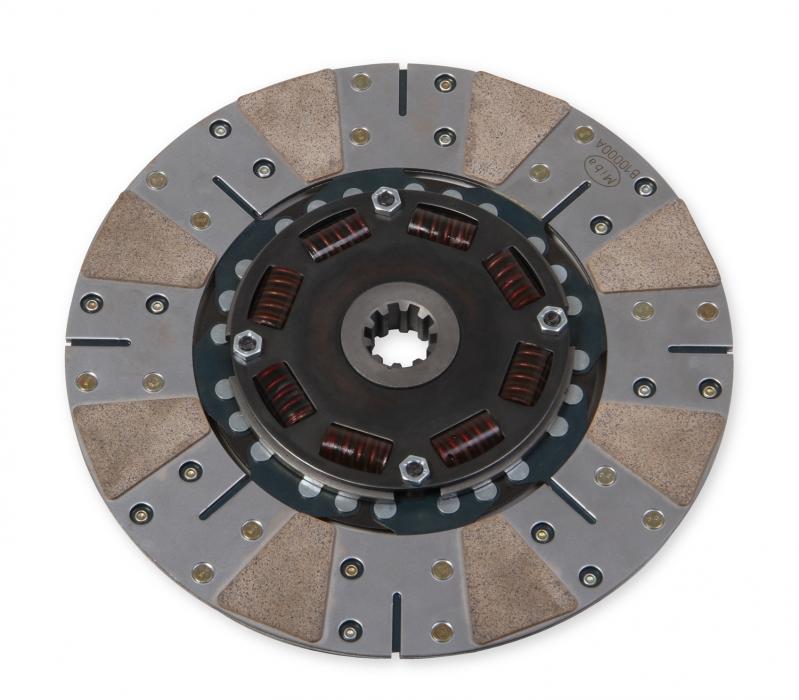

  • Upgraded 8-spring hub with polyurethane encapsulated damper springs handles 3 times the shock load over standard disc springs

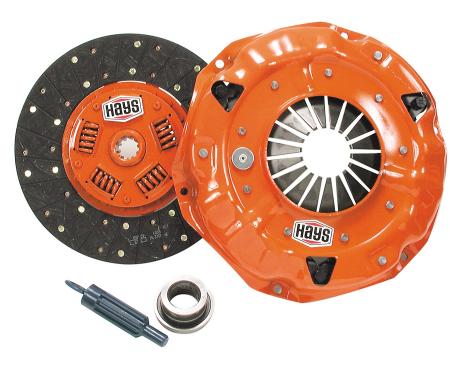

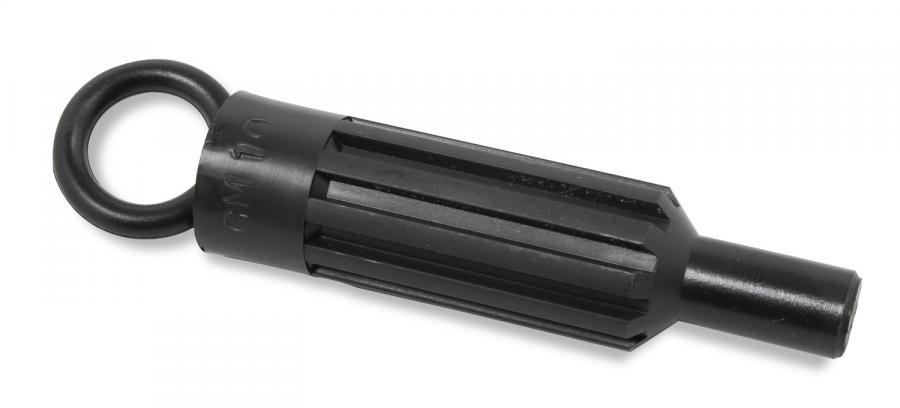

  • All Street 650 clutch kits come complete with pressure plate, disc, throwout bearing, and alignment tool
  • Available for GM, Ford, AMC, Jeep and Chrysler

Downloads:

Download Name File Size
199r11317.pdf165.27KB

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Engine
Chevrolet Camaro Berlinetta 1979 5.0L / 305 / V8
Chevrolet Camaro RS 1968 5.4L / 327 / V8
Chevrolet Camaro RS 1969 7.0L / 427 / V8
5.7L / 350 / V8
5.4L / 327 / V8
Chevrolet Camaro SS 1969 5.7L / 350 / V8
Pontiac Firebird Base 1984 5.0L / 305 / V8
Pontiac Firebird Esprit 1971 6.6L / 400 / V8
Pontiac Firebird Esprit 1981 3.8L / 231 / V6
Pontiac Firebird Formula 1981 3.8L / 231 / V6
Pontiac Firebird S/E 1984 2.8L / 173 / V6

Specifications:

Alignment Tool Included Yes
Application GM
Disc Diameter 10.5
Disc Material Sintered Metallic
Disc Style Spring Hub
Emission Code 5
Input Shaft Diameter 1-1/8 in.
Input Spline 10
Max Horsepower Rating 650
Part Type Clutch Kit
Pilot Bushing Included No
Pressure Plate Style Diaphragm
Product Type Clutch Kits
Throwout Bearing I.D. (inches) 1.380
Throwout Bearing Included Yes
Warranty Limited 90 Day Warranty TX, Limited 90 Day Warranty
