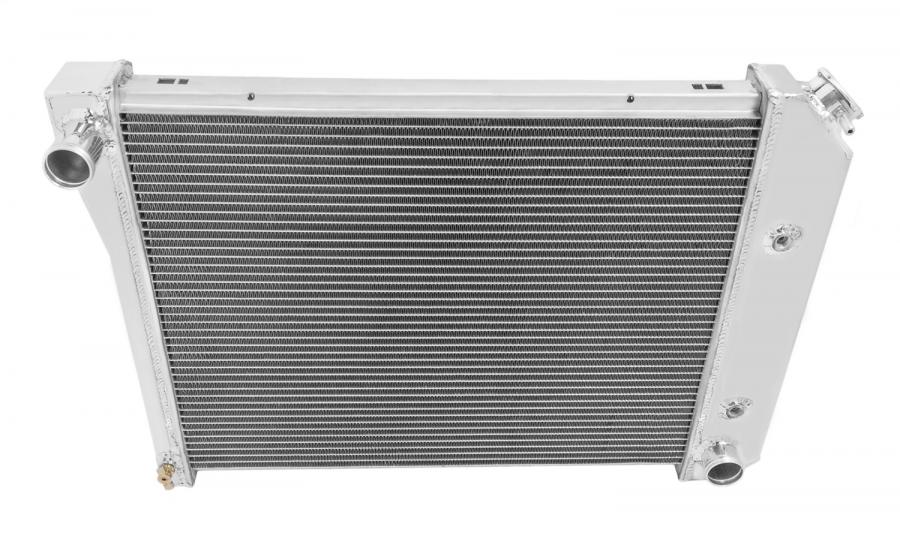

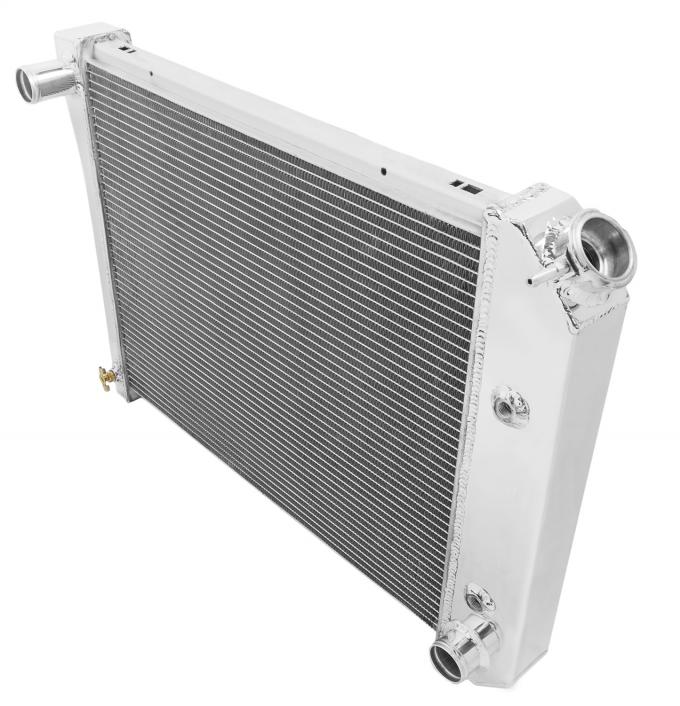

Frostbite Aluminum Radiator- 3 Row FB136

Name: Frostbite Aluminum Radiator- 3 Row FB136
Brand: Frostbite
SKU: 4006427
Price: 766.99 CAD
Availability: InStock

$766.99 ea

NEWARRIVING SOONEstimated Ship Date 12/10/2024 (If Ordered Today)1 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/22/2024

Model: 4006427

0 reviewsWrite a Review Add to Wish List

Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.

CALL US
877.589.9860

Description Vehicle Fitment Downloads Video Specifications Reviews (0) Product Q&A Related Products

High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments. Holley is proud to introduce its latest offering - Frostbite Performance Cooling Products. Our line of Performance Aluminum Radiators will be available in 2, 3, and 4-row sizes as well as an extensive offering of LS-Swap specific platform applications. When it comes to keeping your ride cool, Make it Frostbite!

Features:

100% TIG welded (brazed) seams
Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)
Billet Aluminum Filler Neck and OEM style Brass Petcock
More cooling fins per inch for more efficient cooling
Custom Frostbite High Performance 16lb. radiator cap
Polished top and tanks for custom show appearance
3-Row Radiators supporting applications with 450-750 horsepower
Applications for GM, Ford, Dodge/Chrysler/Jeep and LS-Swap available
Manufacturer’s 1-year Limited Warranty

Note: Frostbite 3 and 4 row radiators will be thicker than stock and can extend into engine bay further interfering with some stock fan/clutch applications. Existing cooling fan modifications may be required during installation. Electric fan and shroud options are available to eliminate stock clutch/fan.

Installation Notes:

Downloads:

Download Name	File Size
199r10955.pdf	173.95KB
199r11914.pdf	286.5KB

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.

Make	Model	Years	Engine
Chevrolet	Camaro	1970	5.7L / 350 / V8 5.0L / 307 / V8 4.1L / 250 / L6
Chevrolet	Camaro	1971	5.7L / 350 / V8 5.0L / 307 / V8 4.1L / 250 / L6
Chevrolet	Camaro	1972	5.7L / 350 / V8 5.0L / 307 / V8 4.1L / 250 / L6
Chevrolet	Camaro	1973	5.7L / 350 / V8 5.0L / 307 / V8 4.1L / 250 / L6
Chevrolet	Camaro	1974	5.7L / 350 / V8 4.1L / 250 / L6
Chevrolet	Camaro	1975	5.7L / 350 / V8 4.1L / 250 / L6
Chevrolet	Camaro	1976	5.7L / 350 / V8 5.0L / 305 / V8 4.1L / 250 / L6
Chevrolet	Camaro	1977	5.7L / 350 / V8 5.0L / 305 / V8 4.1L / 250 / L6
Chevrolet	Camaro	1978	5.7L / 350 / V8 5.0L / 305 / V8 4.1L / 250 / L6
Chevrolet	Camaro	1979	5.7L / 350 / V8 5.0L / 305 / V8 4.1L / 250 / L6
Chevrolet	Camaro	1980	3.8L / 229 / V6 5.7L / 350 / V8 5.0L / 305 / V8 3.8L / 231 / V6 4.4L / 267 / V8
Chevrolet	Camaro	1981	3.8L / 229 / V6 5.7L / 350 / V8 5.0L / 305 / V8 3.8L / 231 / V6 4.4L / 267 / V8
Pontiac	Firebird	1970	4.1L / 250 / L6 5.7L / 350 / V8
Pontiac	Firebird	1971	4.1L / 250 / L6 5.7L / 350 / V8
Pontiac	Firebird	1972	4.1L / 250 / L6 5.7L / 350 / V8
Pontiac	Firebird	1973	4.1L / 250 / L6 5.7L / 350 / V8
Pontiac	Firebird	1974	4.1L / 250 / L6 5.7L / 350 / V8
Pontiac	Firebird	1975	4.1L / 250 / L6 5.7L / 350 / V8
Pontiac	Firebird	1976	4.1L / 250 / L6 5.7L / 350 / V8

Specifications:

# of Passes	Single
Cooling Row Diameter	11/16"
Core Dimension	17 x 20-3/4
Core Thickness	2.20"
Emission Code	5
Flow Style	Cross Flow
Heater Return Port Size	1/8" NPT
Hose Location Inlet	Driver
Hose Location Outlet	Passenger
Inlet Diameter	1-1/2 in.
Inlet Location	Driver
Inlet Size	1-1/2 in.
Mounting Type	Saddle Mount
Outlet Diameter	1-1/2 in.
Outlet Location	Passenger
Outlet Size	1-1/2 in.
Overall Dimension	18-1/2 x 26
Part Type	Radiator
Product Type	Radiator
Row Quantity	3
Rows	3, 3
Transcooler Provision	1/2-20 Straight Thread G 1/4
Transmission Oil Cooler Included	1/2-20 Straight Thread G 1/4
