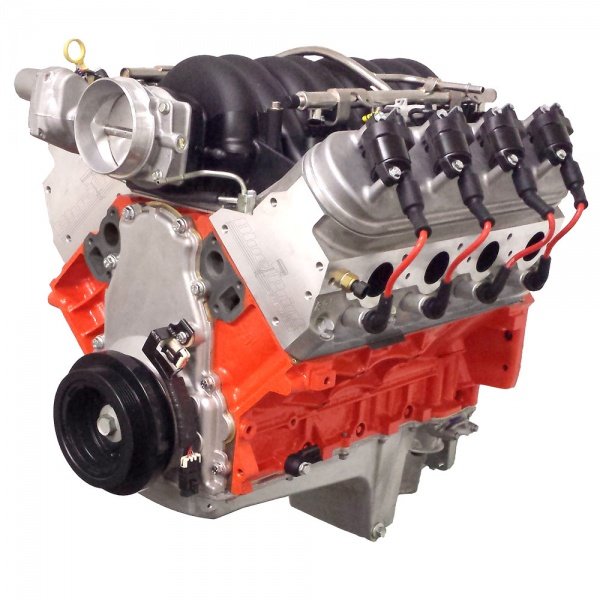

408 LS BluePrint Crate Engine 585HP, Dressed EFI



KEY FEATURES &amp BENEFITS:

• 408 Stroker LS Small Block Chevy, 585HP, 540 Ft. Lbs. Torque, 1.43 Per Cubic Inch
• 80 More Horsepower Than Factory LS7 427 Z06 On 91-93 Octane Pump Gasoline
• Dyno Tested Prior To Shipping, Includes Actual Dyno Test Sheet &amp Detailed Install Guide
• 30 Month, 50,000 Mile Limited Manufacturer Warranty
• Balanced, Blueprinted, &amp Professionally Assembled By Hand In the USA



SPECIFICATIONS:

• Engine Size: 408 C.I. Small Block Chevy LS
• Block: GM 6.0L Cast Iron (Bored .030), 1-Piece Rear Main Seal, Squared &amp Parrallel Decked, Align Honed Main Bearing Bore, Cylinders Are Sonic Tested For Thickness
• Rotating Assembly: New Forged Steel Crank w/4.00" Stroke, 58X Reluctor Wheel, Forged I Beam Rods with 150,000 PSI Bolts, Mahle Performance Rings, Forged Aluminum 10.8:1 Pistons
• Cylinder Heads: BluePrint Aluminum, 68CC Chamber, Stainless Valves w/Swirl Polished Undercut Stem, 3 Angle Valve Job, Chrome Nickel Valve Seats, Manganese Bronze Valve Guides, Chromeoly Retainers, 7 Degree Valve Locks, Dual Valve Springs, Rocker Arm Studs w/Guide Plates For Pushrods, &amp Viton Valve Stem Seals, Intake Flows
• Camshaft: Aggressive Hydraulic Roller, .624 Intake, .624 Exhaust, 239 Intake, 255 Exhaust Duration @0.50, 114 Lobe Separation
• Intake Manifold: LS3 &amp Drive By Wire Throttle Body
• Ignition: Coil Packs, Controlled By Powertrain Control Module
• Fuel System: High Performance Fuel Injectors, Requires 350 LPH Or Larger Fuel Pump Required &amp Not Included
• Includes: Complete Fuel Injection with Pre-Tuned Computer, Wiring Harness, All Necessary Sensors, Valve Covers, Retro Fit Oil Pan, Gear Driven Starter, Timing Cover, High Quality Aftermarket Internally Balanced Harmonic Balancer, Champion 9405 Spark Plugs w/.040 GAP, Spark Plug Wires, &amp Coil Packs
• Does Not Include: LS Accessory Drive System With Accessories, LS Crossmember, LS Engine Mounts, LS Engine Swap Radiator &amp Hoses, Non-Weighted Flexplate Or Flywheel, Aluminum Water Pump, Exhaust Manifolds Or Headers, Custom Exhaust Adapting &amp Modifications, Hood Modifications, Fuel System, Engine Oil Filter, Adapters To Fit Your Transmission, Installation
• Recommended Flex Plate Or Flywheel: Non-Weighted
• Recommended Stall Converter: 2,000 - 2,400 RPM
• Recommended Engine Oil: 10W30 Non-Synthetic
• Recommended Minimum Octane Fuel: 91-93
• NOTE: This engine may not clear your factory hood...hood modification or an aftermarket hood may be required. This engine is shipped dry without engine oil. Not designed for late model applications that were originally equipped with factory fuel injection. All horsepower and torque numbers are provided by the crate engine manufacturer and are within 2% of advertised numbers.. These numbers were achieved on a professionally operated dynamometer to compensate for variables such as altitude, temperature, relative humidity, vapor pressure, and barometric pressure. The number provided were measured is at the flywheel, corrected to SAE J1349 standards, and NOT at the rear wheels. Measured rear wheel horsepower can be anywhere from 15-25% less than flywheel horsepower. Many factors will affect horsepower the horsepower numbers you will see and include exhaust header selection &amp diameter, ignition and fuel system components, fuel octane rating &amp quality, proper torque converter selection (if equipped with automatic transmission), drivetrain efficiency, etc.

About BluePrint Engines: BluePrint Engines was founded 20 years ago on the principle of building great engines at affordable prices. Since then, they've built over 300,000 engines and have been featured on Over-Hauling, Counting Cars, Fat and Furious TV shows. BluePrint relentlessly builds and dyno tests engine combinations that deliver a balanced combination of power with long term durability. Once a winning combination is approved, their ISO 9001:2008 world class standards to produce each engine with consistent and repeatable performance and high quality. In fact, all engines will deliver power within 2% of the advertised number which leads the industry.

An engine is only as good as the components in it and that's why BluePrint selects name brand components are used wherever possible. Each engine is assembled carefully by hand by a master engine builder. Upon completion, each engine is hot tested for leaks and dyno tested...you even receive the actual dyno test sheet of YOUR engine before shipping. BluePrint stands behind each crate engine with a 30 month 50,000 mile limited warranty.
