Cold Case Radiators Camaro/Firebird Dual 12 Inch Fan Kit Auto Transmission For 67-69 Camaro/Firebird CHC11ASK

Cold Case Radiators Camaro/Firebird Dual 12 Inch Fan Kit Auto Transmission For 67-69 Camaro/Firebird CHC11ASK
$1,073.99 kt
NEWARRIVING SOONEstimated Ship Date 12/02/2024 (If Ordered Today)
Model: 4018552
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
OVERSIZE 2
STORE PICKUP
[More Info]

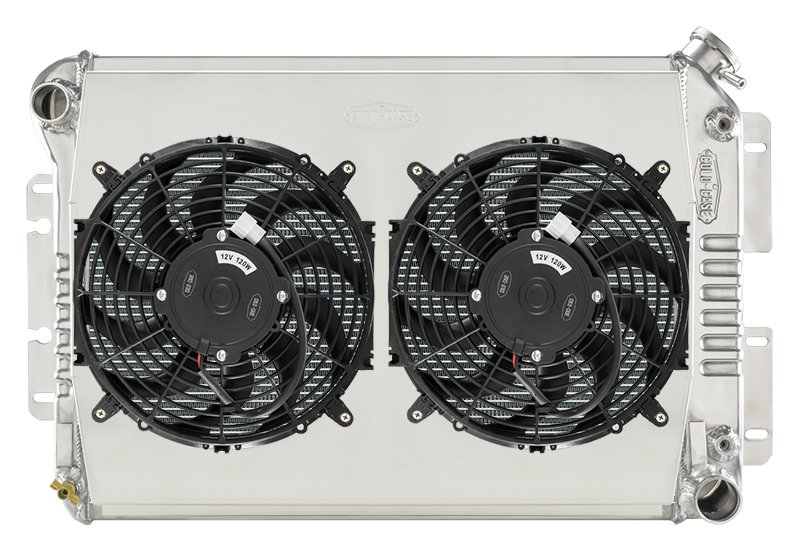

67-69 Camaro Big Block / Firebird Auto Transmission Aluminum Radiator and Dual 12 Inch Fan Kit. AT Cars. Also fits 68-71 Nova big block cars with bracket mounted radiators.

When you need the biggest and best, look no further than the Cold Case Super Duty Line. All Super Duty kits include 2 row radiators with 1.25 inch tubes, aluminum fan shroud and this application now includes dual 12 inch fans, flowing at 1400cfm per fan! For extreme horsepower applications OR if you just want the best of the best. Also perfect for cars with not much clearance.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

  • 100 percent TIG welded
  • (2) 1.25 inch Rows
  • All Aluminum
  • Polished OE style tanks
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For auto trans (auto-trans-cooler)
  • Direct fitment for 67-69 Camaro BB/Firebird

Radiator Specs

  • Core Height 16.85 inch
  • Core Width 23 inch
  • Overall Height 18.5 inch
  • Overall Width 27.5 inch
  • Overall Thickness 6.25 inch
  • Tubes (2) 1.25 inch Tubes
  • Upper Hose 1.50 inch
  • Lower Hose 1.75 inch
  • Trans Cooler Fitting: 5/16 inch Inverted Flare
About Cold Case Radiators

Cold-Case Radiators® is a division of Max Performance Inc, a leading supplier of auto restoration parts and accessories. Cold-Case Radiators® was founded in 2014 when a need for high quality aluminum radiators at a fair price surfaced. We're not new to the automotive business though. Max Performance Inc has been supplying the classic car market for over 35 years and Pypes Exhaust is our sister company, who has specialized in performance exhaust since 2003.

Our goal is simple. At Cold-Case Radiators®, we want to make aluminum performance radiators and accessories available and affordable to everyone. Even with our reduced prices, we do not sacrifice quality. All of our radiators are 100% tig welded aluminum. There is no cutting corners here.

We specialize in the Muscle Car market. From the 1950s all the way to present day, you will find Cold-Case Radiators® on American built muscle. The next time you want to upgrade that engine bay, remember the name...Cold-Case Radiators®.

Best thing about us is...Our radiators all come with a limited lifetime warranty! We stand behind our quality, research, and our products. If our radiator doesn't keep your car cool, send it back as part of our '60 day COOL Guarantee.'

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Chevrolet Camaro RS 1967 - 1969 Chevy Big Block
Chevrolet Camaro SS 1967 - 1969 Chevy Big Block
Chevrolet Camaro Z28 1967 - 1969 Chevy Big Block
Chevrolet Camaro 1967 - 1969 Chevy Big Block
Pontiac Firebird 326 1967 Chevy Big Block
Pontiac Firebird 350 HO 1969 Chevy Big Block
Pontiac Firebird 350 1968 - 1969 Chevy Big Block
Pontiac Firebird 400 1967 - 1969 Chevy Big Block
Pontiac Firebird HO 1967 - 1968 Chevy Big Block
Pontiac Firebird Sprint 1967 - 1969 Chevy Big Block
Pontiac Firebird Trans Am 1969 Chevy Big Block
Pontiac Firebird 1967 - 1969 Chevy Big Block

Specifications:

Amp Draw 6.85 Avg
Blade Material Curved Nylon
CA Proposition 65 CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Core Height 16.85 Inch
Core Width 23 Inch
Engine Chevy Big Block
Fan Diamter In 12 Inch
Fan Included Yes
Fan Quantity 2
Finish Polished
Fins Per Inch 16
Lower Hose 1.75 Inch
Manufacturer Warranty Limited Lifetime Warranty
Material Aluminum
Max Fan Cfm 3200 CFM
Overall Height 18.5 Inch
Overall Width 27.5 Inch
Shroud Included Yes
Thickness 6.75 Inch
Transmission Type Automatic
Upper Hose 1.50 Inch
Vehicle Type Car
Wiring Included No
