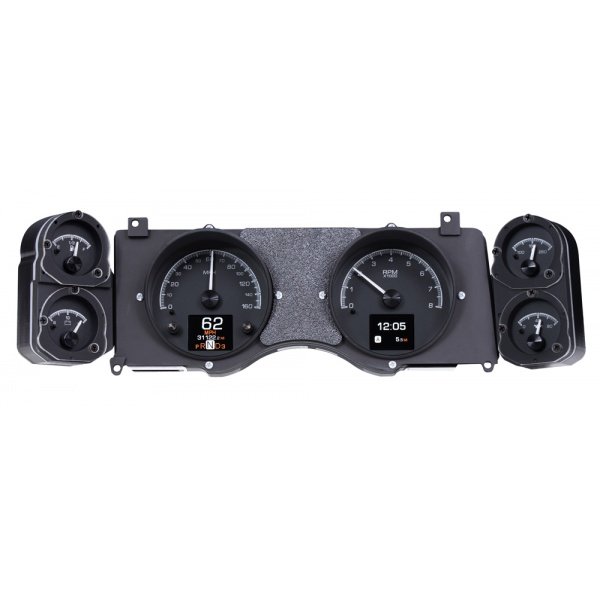

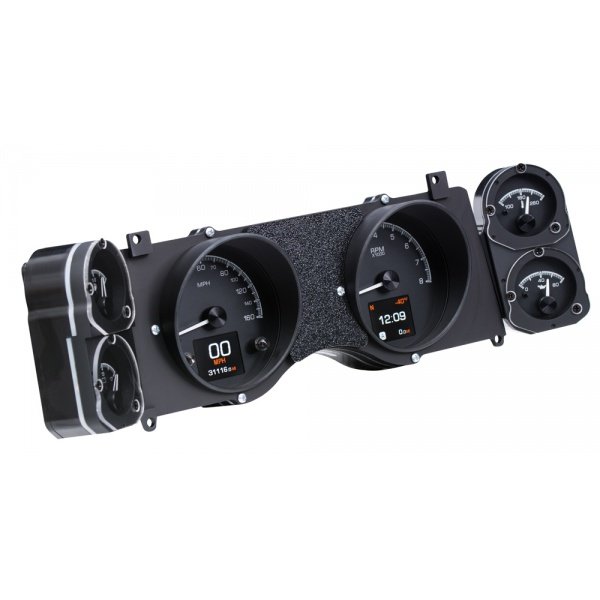

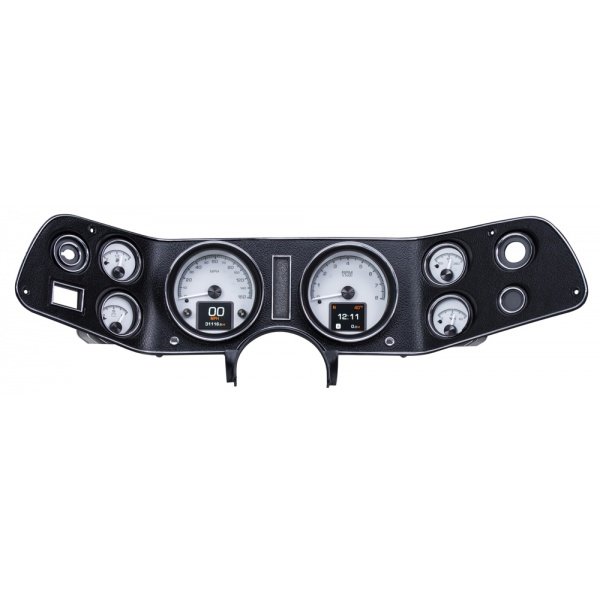

Chevy Camaro Analog Dash Gauges, Dakota Digital (HDX), 1970-1981

• Available In Black Or Silver Alloy Gauge-Face Styling
• Full Six-Gauge System, Including Billet Trim Rings And TFT-Display Message Centers, That's Ready To Bolt Into A Stock Or Reproduction Plastic Housing (Sold Separately, P/N 2035151)
• Select 12 Pre-Set Illumination Colors For Gauge Readings And Needles, And The Message Centers Or Customize Each Zone Yourself!
• Calibration And Personal Settings Are Manipulated Using The Built-In, Capacitive-Touch Buttons, Or The Available Bluetooth App For Apple And Andriod Devices
• Each Needle Hub Is Black Nickel Plated Spun-Aluminum To Match The Buttons
• Features Dead-Faced Indicators (Turn Signals, High Beam, Check Engine, Cruise Control, Parking Brake, Plus Two User-Definable), And A Red, Settable Warning Light For Each Gauge
• With A Central Control Box, Installation Is Greatlly Simplified With Vehicle-Harness Sourced Signals And Supplied, Solid State Sending Units Connecting Cleanly To Their Respective Terminal
• Made In The USA

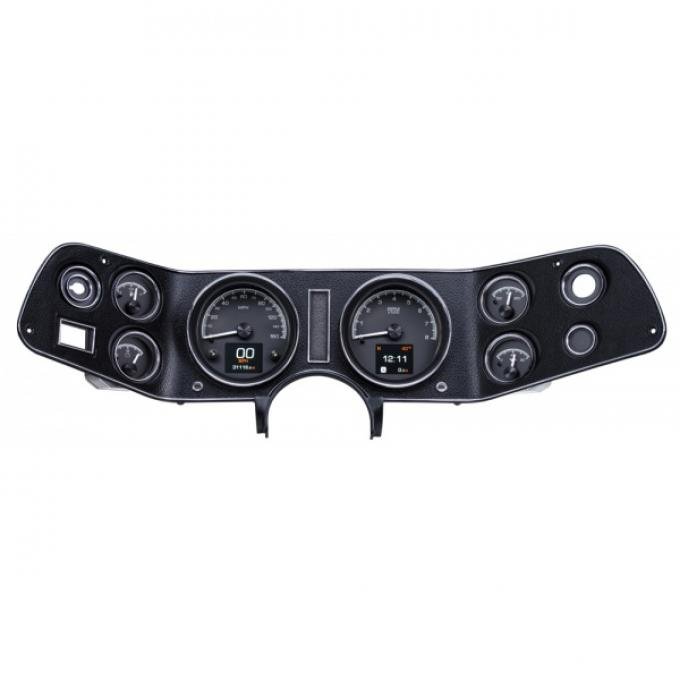

• NOTE: Bezels Around Gauges Included. System Uses OEM Or Reproduction Style Instrument Carrier Assembly Which Is Available For Purchase Separately

• Includes Temperature, Oil & Speed Senders

Analog Gauges:

Speedometer
·0 -160 MPH (optional metric version 0- 260 kmh)
·Split scale provides resolution of a 120MPH speedometer, with a top end range of 160MPH.

Tachometer ·0- 8,000 RPM
Oil Pressure ·0- 80 psi
Water Temperature ·100- 260ºF (optional metric version 40- 120ºC)
Fuel Level ·E, 1/4, 1/2, 3/4, F
Voltmeter ·9- 17 VDC

Digital Message Centers:

Standard Displays
·Odometer (One time user settable, Million Mile)
·Dual (A/B) Trip Meter (0- 9,999.9)
·Clock (12 hour)
·Estimated Range/ Miles to Empty

Performance Meters
·0- 60 MPH Timer (0- 100 kmh)
·1/4 and 1/8 mile time
·1/4 and 1/8 mile end speed (trap speed)
·High speed recall
·High RPM recall

Gauges
·Speedometer (0- 255 MPH/kmh)
·Tachometer (0- 9,990 RPM)
·Oil Pressure (0-100 psi displayed in 1 psi increments)
·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)
·Voltmeter (9- 17 VDC)
·Fuel Level (0-99% full)

Built-in Indicators:

Indicators
·Turn Signals (Left/ Right)
·High Beam
·Check Engine
·Parking Brake
·Cruise Control (On/ On & Engaged when vehicle is equipped)
·Gear Position (Optional 33-131009 sensor required)
·4 x 4 (When vehicle is equipped)
·Wait to Start (When vehicle is equipped)
·Two Auxiliary input indicators with user-programmable labels
·Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)

Lighting Technology:

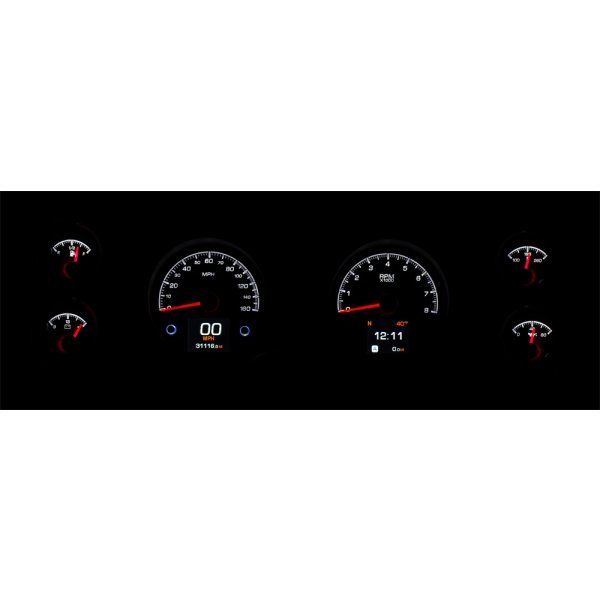

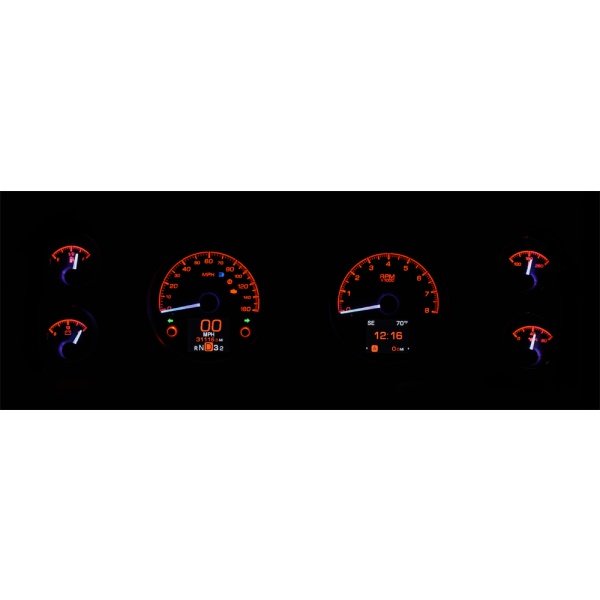

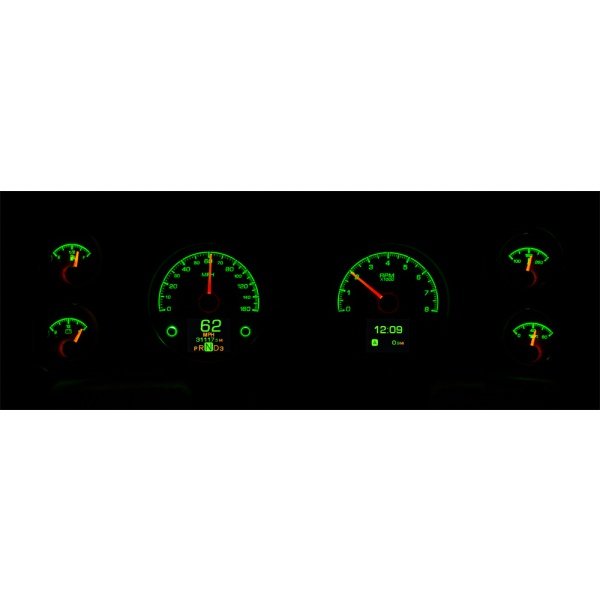

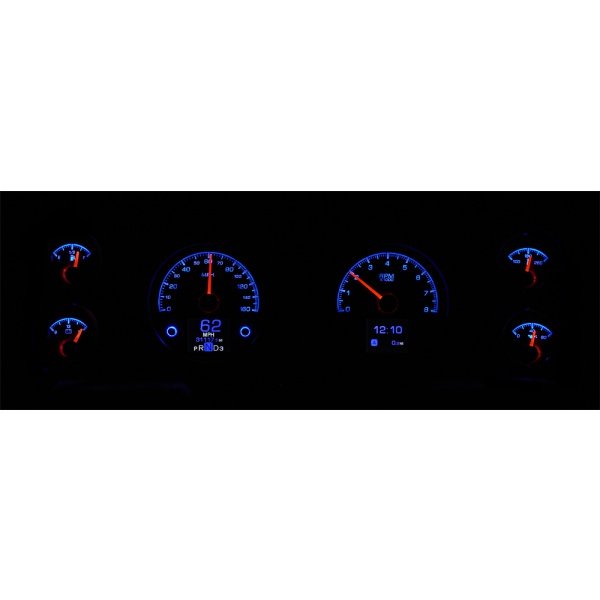

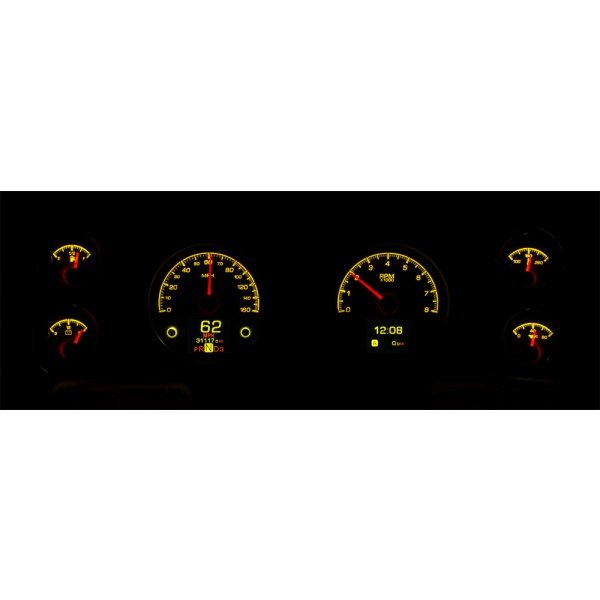

Colors ·Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color.
Brightness ·Both daytime and nighttime brightness can be easily controlled through the HDX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch.
Themes ·With 12 factory preset color themes, you can quickly create a beautiful looking system. Or, for the ultimate in customization, choose all of the color zones yourself.
Technology ·Full LED backlighting provides a strikingly visual gauge package, with sharp contrast for ease of viewing both night and day. Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime theme if desired. Whether your goal is an OE look or something truly bold, the HDX Series lets you make that choice.
