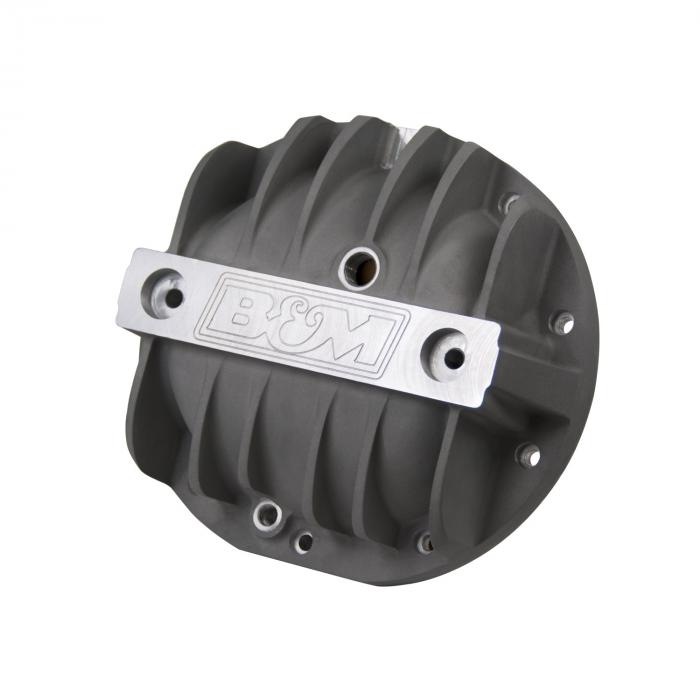

B&M Hi-Tek GM 10-Bolt Aluminum Differential Cover, 8.2-Inch BOP 70503

B&M Hi-Tek GM 10-Bolt Aluminum Differential Cover, 8.2-Inch BOP 70503
B&M Hi-Tek GM 10-Bolt Aluminum Differential Cover, 8.2-Inch BOP 70503
$422.99 ea
NEWARRIVING SOONEstimated Ship Date 12/09/2024 (If Ordered Today)5 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/20/2024
Model: 3998324
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory-stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, a machined B&M logo and all necessary hardware, and easy-to-follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included.
Features:
  • Load Bolts for Additional Support for Bearing Caps
  • Magnetic Drain Plug for Easy Servicing
  • A356.0-T6 Aluminum Construction
  • Additional .4-quart Fluid Capacity
  • Over 65 Years of B&M Quality
  • Lifetime Limited Warranty
  • Machined B&M Logo

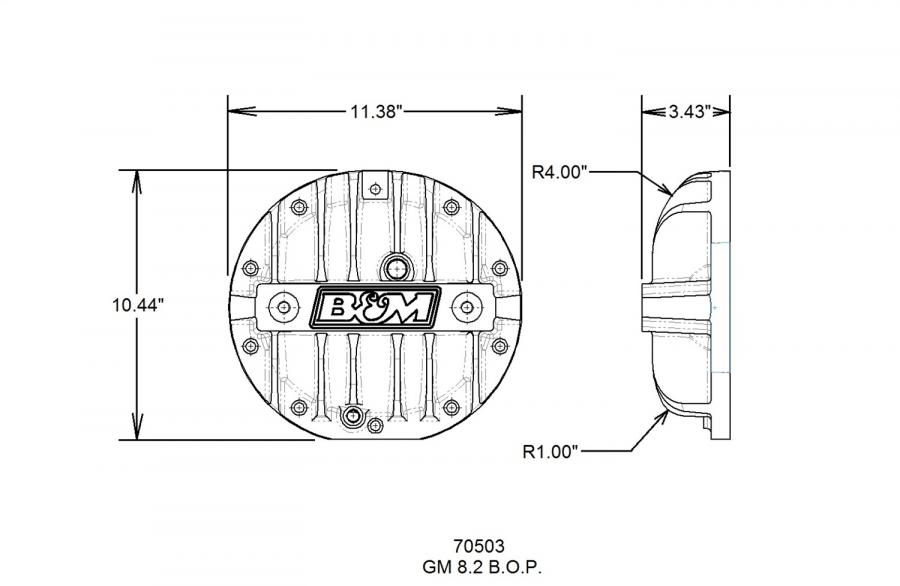

Designed to fit most vehicles with GM 8.2-inch 10-bolt B.O.P. differential, however, vehicles may have other interfering components that may require modifications or moving of existing brackets, require longer cover bolts or different cover bolts, clearance of sway bars, etc. - Checking for adequate clearance and fitment for your application should be verified prior to purchase & installation. Refer to the ID guide and measurement drawings for specifications.
Installation Notes:
Designed to fit most vehicles with GM 8.2-inch 10-bolt B.O.P. differential, however, vehicles may have other interfering components that may require modifications or moving of existing brackets, require longer cover bolts or different cover bolts, clearance of sway bars, etc. - Checking for adequate clearance and fitment for your application should be verified prior to purchase & installation. Refer to the ID guide and measurement drawings for specifications.

About B&M Racing

B&M® specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, and many other transmission products including cast deep aluminum transmission pans, transmission coolers, and automatic transmission fluid. B&M Performance & Off-Road has been at the vanguard of the growing automotive aftermarket since the early 1950s. Racers themselves, B&M’s founders identified the needs of local performance enthusiasts and developed products to fill those needs. B&M specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, automatic shift handles, extended transfer case handles, cast deep aluminum transmission pans, differential covers, transmission coolers, power steering coolers, automatic transmission fluid, and transmission accessories for performance street, truck, Jeep, and off-road applications.

Downloads:

Download Name File Size
bm_warranty.pdf87.47KB
70503_instructions.pdf1.41MB

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Engine
Pontiac Firebird 326 1967 5.3L / 326 / V8
Pontiac Firebird 350 HO 1969 5.7L / 350 / V8
Pontiac Firebird 350 1968 5.7L / 350 / V8
Pontiac Firebird 350 1969 5.7L / 350 / V8
Pontiac Firebird 400 1967 6.6L / 400 / V8
Pontiac Firebird 400 1968 6.6L / 400 / V8
Pontiac Firebird 400 1969 6.6L / 400 / V8
Pontiac Firebird Base 1967 6.6L / 400 / V8
5.3L / 326 / V8
3.8L / 230 / L6
Pontiac Firebird Base 1968 5.7L / 350 / V8
6.6L / 400 / V8
4.1L / 250 / L6
Pontiac Firebird Base 1969 5.7L / 350 / V8
6.6L / 400 / V8
4.1L / 250 / L6
Pontiac Firebird Base 1970 5.7L / 350 / V8
6.6L / 400 / V8
4.1L / 250 / L6
Pontiac Firebird Base 1971 5.7L / 350 / V8
7.5L / 455 / V8
6.6L / 400 / V8
4.1L / 250 / L6
Pontiac Firebird Esprit 1970 6.6L / 400 / V8
5.7L / 350 / V8
4.1L / 250 / L6
Pontiac Firebird Esprit 1971 6.6L / 400 / V8
5.7L / 350 / V8
7.5L / 455 / V8
4.1L / 250 / L6
Pontiac Firebird Formula 1970 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Formula 1971 6.6L / 400 / V8
5.7L / 350 / V8
7.5L / 455 / V8
Pontiac Firebird HO 1967 5.3L / 326 / V8
6.6L / 400 / V8
Pontiac Firebird HO 1968 5.7L / 350 / V8
Pontiac Firebird Sprint 1967 3.8L / 230 / L6
Pontiac Firebird Sprint 1968 4.1L / 250 / L6
Pontiac Firebird Sprint 1969 4.1L / 250 / L6
Pontiac Firebird Trans Am 1969 6.6L / 400 / V8
Pontiac Firebird Trans Am 1970 6.6L / 400 / V8
5.7L / 350 / V8
Pontiac Firebird Trans Am 1971 6.6L / 400 / V8
7.5L / 455 / V8
5.7L / 350 / V8

Specifications:

Bolt Count 10
Bolt Pattern GM 8.2 B.O.P.
California Proposition 65 Chemical Name Chromium (hexavalent compounds)
California Proposition 65 Required Yes
Call Out Size (in) 2.83
Carrier Main Cap Support Yes
Color/Finish Raw Aluminum
Drain Plug Included Yes
Emission Code 5
Filler Plug Included Yes
Gasket Included No
Material A356.0-T6 Aluminum
Part Type Differential Cover
Product Type Differential Cover
Proposition 65 www.P65Warnings.ca.gov
Thickness (in) 3.43
Warranty Limited Lifetime (Lifetime)

Reviews:

Write a Review
* Your Name:
* Email (This will not be displayed)
* Rating:
Comments:

Ask a question about

B&M Hi-Tek GM 10-Bolt Aluminum Differential Cover, 8.2-Inch BOP 70503:
Reason for Inquiry:

Related Products

Camaro Differential Cover, 12-Bolt, 1967-1970
Camaro Differential Cover, 12-Bolt, 1967-1970
Model: 4019293
Condition: NEW
$79.99 ea

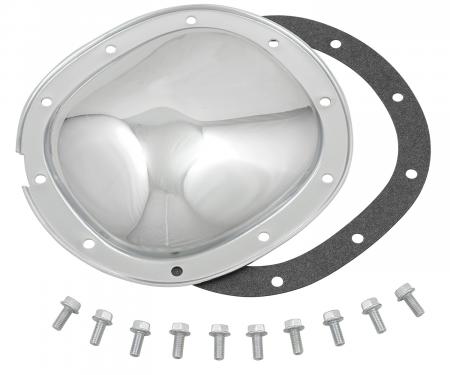

Mr. Gasket Chrome Differential Cover 9894
